272442
DILH2000/22(RAW250)

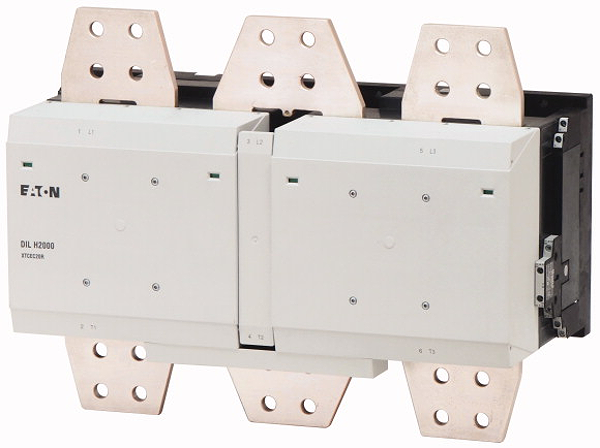

Contactor, Ith =Ie: 2450 A, RAW 250: 230 - 250 V 50 - 60 Hz/230 - 350 V DC, AC and DC operation, Screw connection
Alternate Catalog No. XTCEC20R22B. EL-Nummer (Norway). 4130501. Contactor, Application: Mains contactors for resistive loads from 1000 A, AC -1 contactors greater than 1000 A, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, Connection technique: Screw connection, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 2450 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 5000 A, For use with: DILM820-XHI…, Instructions: integrated suppressor circuit in actuating electronics, 660 V, 690 V or 1000 V: not directly reversing, Voltage AC/DC: AC and DC operation
ECCN: | |
Country of Origin: | RO |
EAN: | |
Weight: | 32.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
