216382
M22-KC01

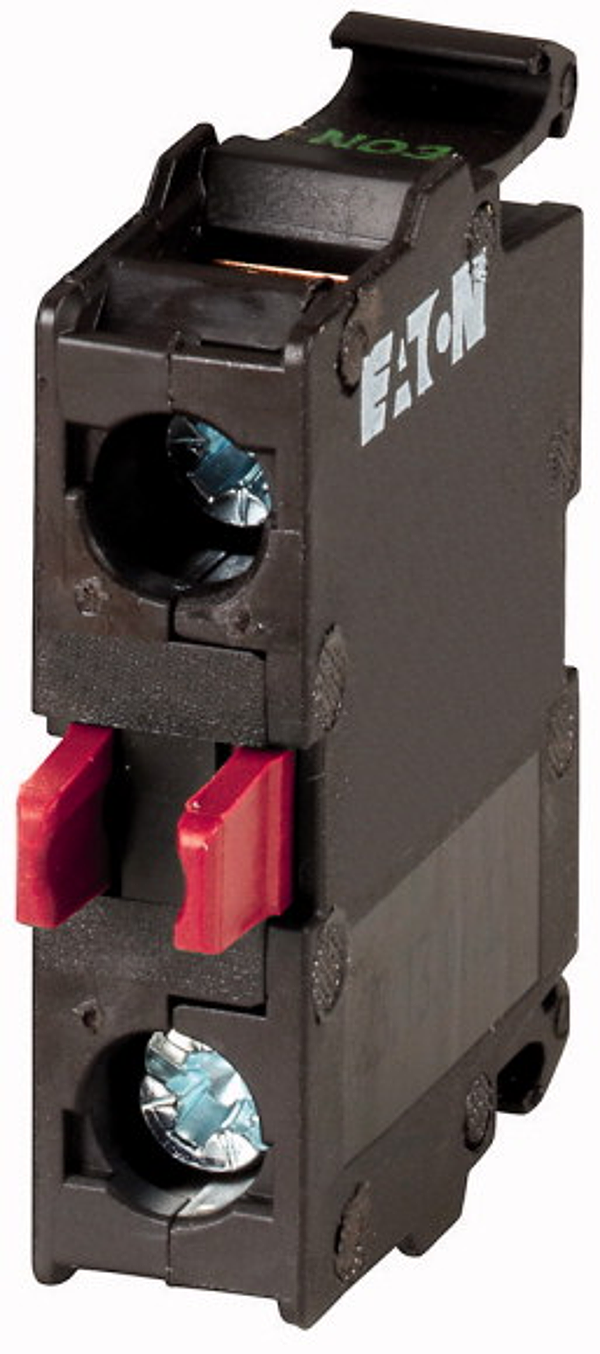

Contact element, 1 N/C, base fixing, 6. contact, screw connection
Alternate Catalog No. M22-KC01Q. EL-Nummer (Norway). 4355366. Contact element, Connection technique: Screw terminals, Fixing: Base fixing, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Degree of Protection: IP20, Connection to SmartWire-DT: no, Connection type: Single contact, Standards: IEC 60947-5-1
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.01 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
