214781
T6-3-8212/E/HI12

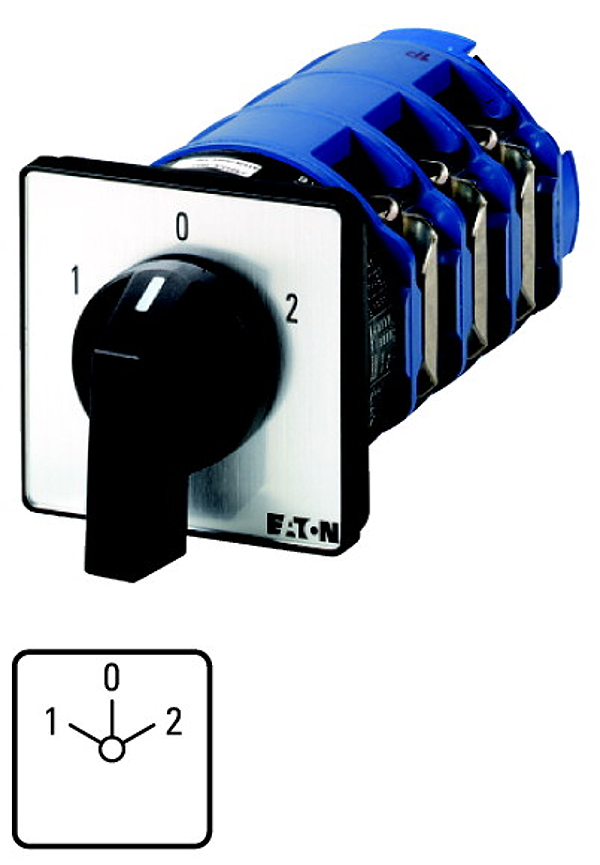

Changeoverswitches, T6, 150 A, flush mounting, 3 contact unit(s), Contacts: 9, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8212
EL-Nummer (Norway). 1456952. Changeover switch, Product range: Control switches, Part group reference: T6, with black thumb grip and front plate, Contacts: 9, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 75 kW, Rated uninterrupted current: Iu = 150 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 1.16 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
