201450
T8-3-8342/I48/SVB/HI11

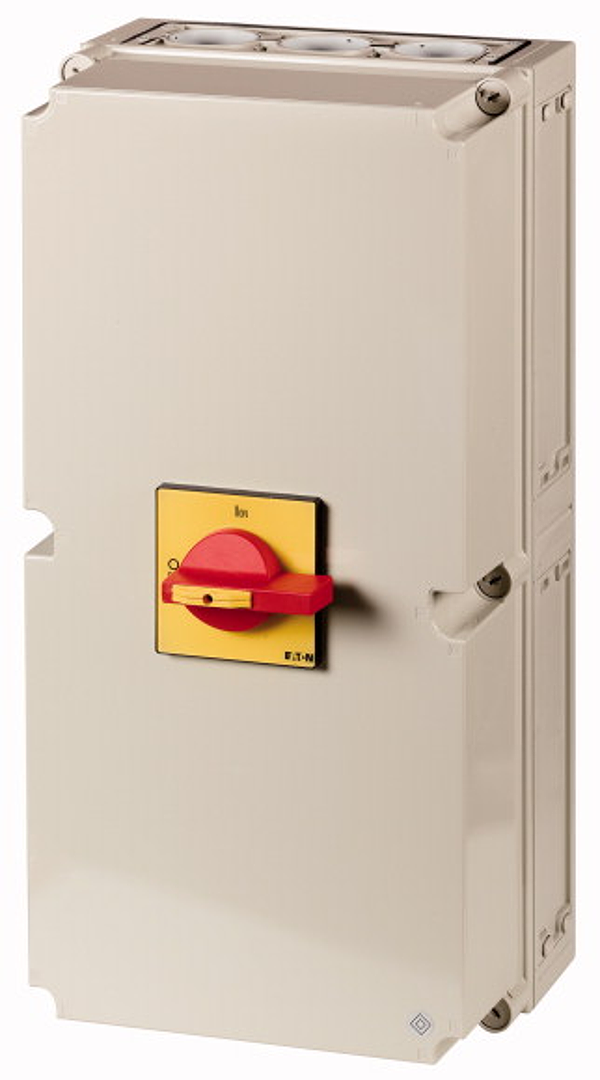

Main switch, T8, 315 A, surface mounting, 3 contact unit(s), 6 pole, 1 N/O, 1 N/C, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position
Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T8, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Information about equipment supplied: with KS4‐CI and K150/1/BR: Ingress protection IP64, 6 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 132 kW, Rated uninterrupted current: Iu = 315 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 17.28 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
