Eaton 201448

T6-160-6/I45/SVB/HI11

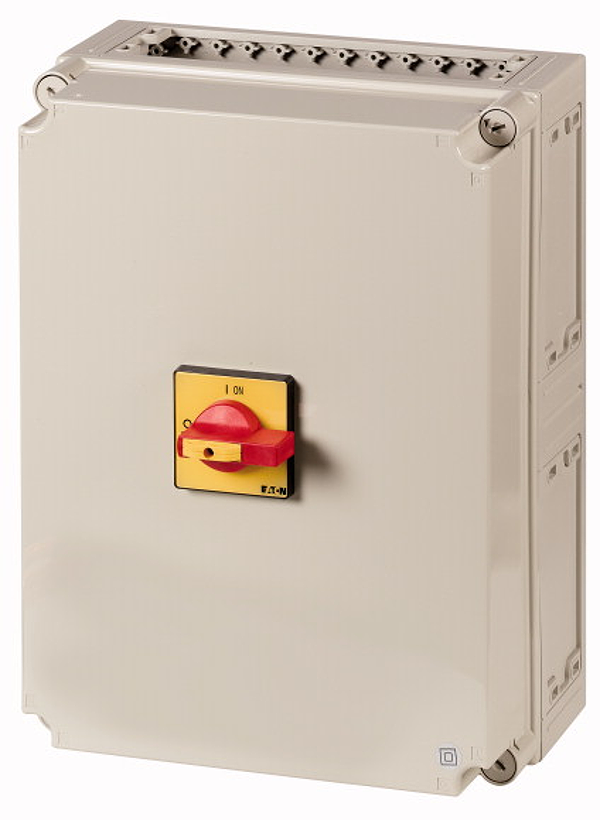

Main switch, T6, 160 A, surface mounting, 6 contact unit(s), 6 pole, 1 N/O, 1 N/C, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position

Description

Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T6, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Information about equipment supplied: Enclosure without flanges with K95/1N/BR., FL4 gland plate insert.. order separately, see CI insulated enclosure -> accessories, 6 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 160 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
