Eaton 187098

M30C-FWRS3-RS

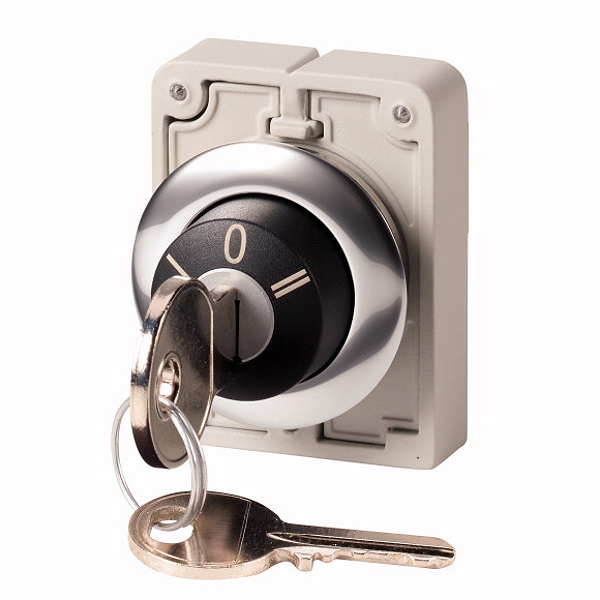

Key-operated actuator, RMQ-Titan, key operation lock mechanism, maintained, Not suitable for master key systems, 3 positions, Ronis 455, II, Metal bezel

Description

Alternate Catalog No. M30C-FWRS3-RS. EL-Nummer (Norway). 4315720. Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: key operation lock mechanism, maintained, Not suitable for master key systems, 3 positions, Lock mechanism: Ronis 455, I, II, Degree of Protection: IP64, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., with plunger bridge for the middle contact, with two keys, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64
