178857
KLV-F4HWP-4PR

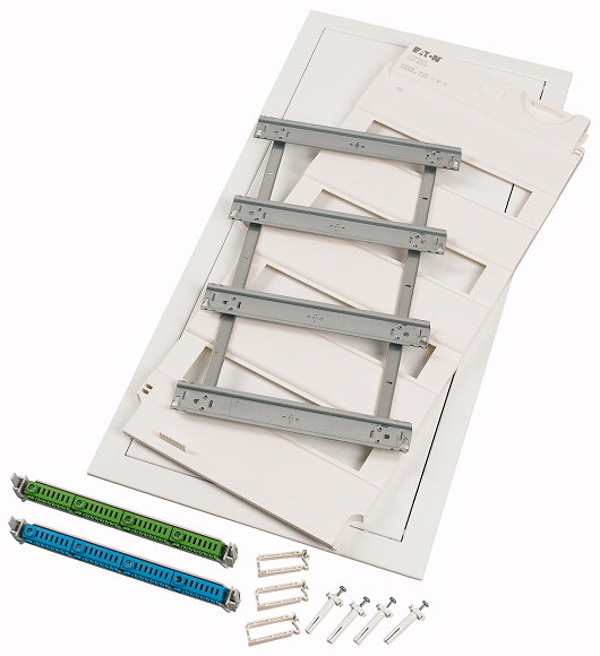

Hollow wall expansion kit with plug-in terminal 4 row; form of delivery for projects
Form of delivery for projects: Hollow-wall expansion kit for second generation KLV compact distribution boards, slim door frame design, optional door with frame with requested RAL color, equipment supplied: device carrier, front cover, neutral and protective conductor terminals with KSK plug-in terminal technology, 3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm, cable retainer, installation instructions, label sheet. Standards: Complete distribution board in accordance with IEC/EN 60670-24, DIN 43871, IEC/EN 62208 and, accordingly, approved for distribution boards as defined in IEC/EN 61439-3.
ECCN: | |
Country of Origin: | CZ |
EAN: | |
Weight: | 3.38 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
