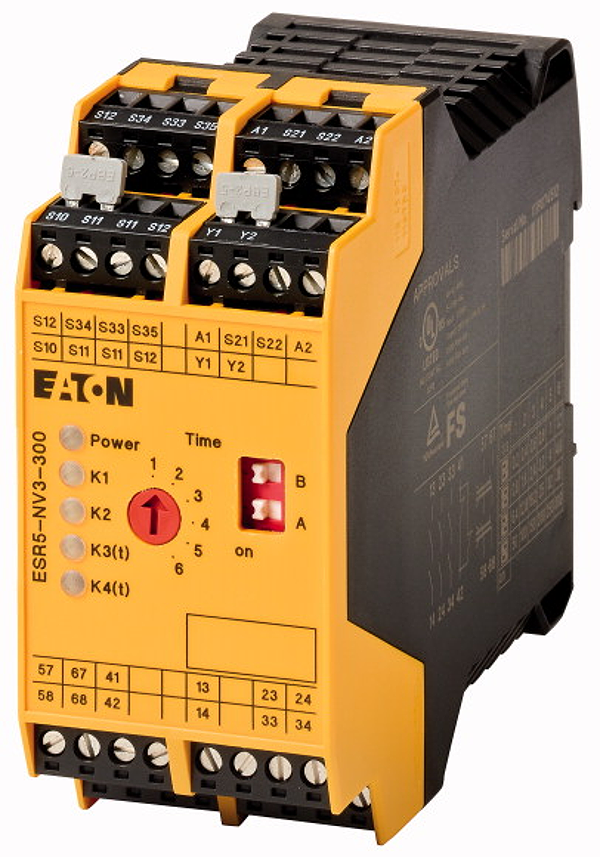

Eaton 171858

ESR5-NV3-300

Safety relays for emergency stop/protective door/light curtain monitoring, 24VDC, off-delayed, 0-300 sec.

Description

Alternate Catalog No. ESR5-NV3-300. EL-Nummer (Norway). 0004560876. Safety relay with adjustable 0-300 sec. OFF-delay for implementing basic emergency stop / protective door / light curtain functions, single-channel or dual-channel operation, supply voltage 24VDC, 2 Enable current paths (IEC/EN 60204 Stop category 0), 2 Enable current paths (IEC/EN 60204 Stop category 1), 1 signal current path, busbar tag shroud to EN 50274 with vertical actuation from the front finger- and back-of-hand proof, suitable for PL e, cat. 4 as per EN ISO 13849-1 / SILCL 3 as per IEC 62061 / SIL 3 for high-demand requirements only, degree of protection IP20, minimum degree of protection of installation location: IP54, TÜV tested, rated impulse voltage 4 kV / basic isolation (safe isolation, reinforced insulation and 6 kV between the enable current paths (13/14, 23/24, 33/34) and the remaining current paths and between 13/14, 23/24, 33/34 arranged one.)
