167397
EME1P32

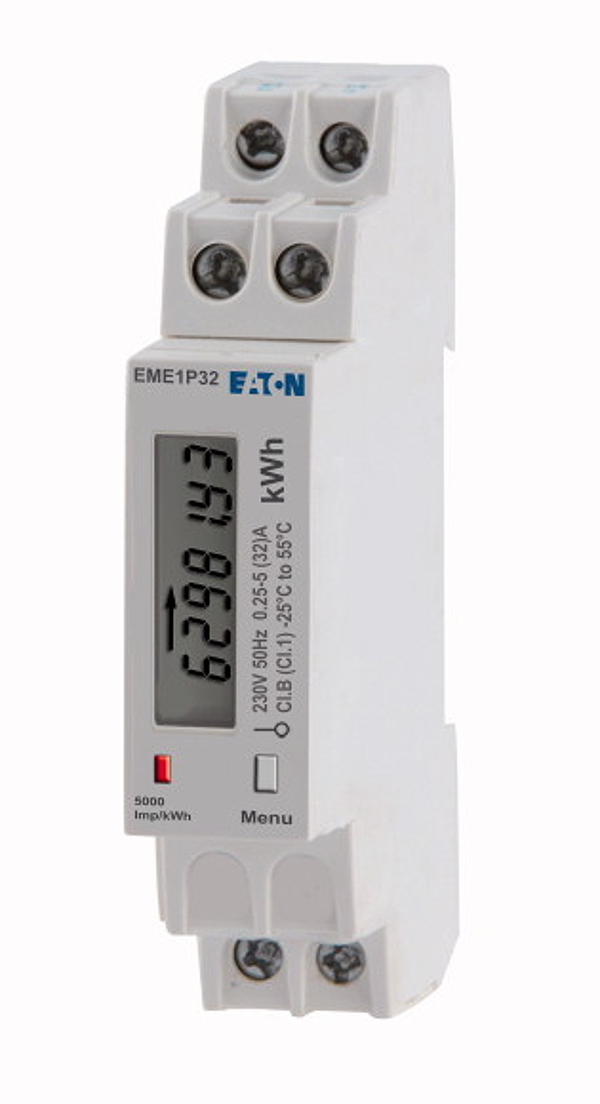

Power meter, 1 N, 32 A
Alternate Catalog No. EME1P32. Digital real power meter with I - U - Hz - PF measurement and instantaneous real power display, with IR communication interface on the side - 1 tariffs - 1 S0, real power meter for single-phase alternating current with digital counter, displays up to 7 numbers (2 decimals), with 1 S0 interfaces for real power with 1 tariffs, LCD Display, for direct connection up to 32 A, display with 7 numbers for showing the power values and other parameters, accuracy class 1 for real power and power as per EN 50470-3 (B), perfect operating current range (Ist .. Imax) - for directly connecting 32 A and 40 A = 0.020 .. 32 A or 40 A, standard version with communications-capable add-on of 1 space units, bus transmission, power register can be set to zero (not on MID type), power register for input and output with tariff 1, displays instantaneous real input and output power, current in amperes (RMS), voltage (RMS), power factor, mains frequency, firmware release, firmware checksum
ECCN: | |
Country of Origin: | IT |
EAN: | |
Weight: | 0.08 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
