Product
Eaton
167383
TSDW1COMIN
Request a Quote
Image copyright: Eaton

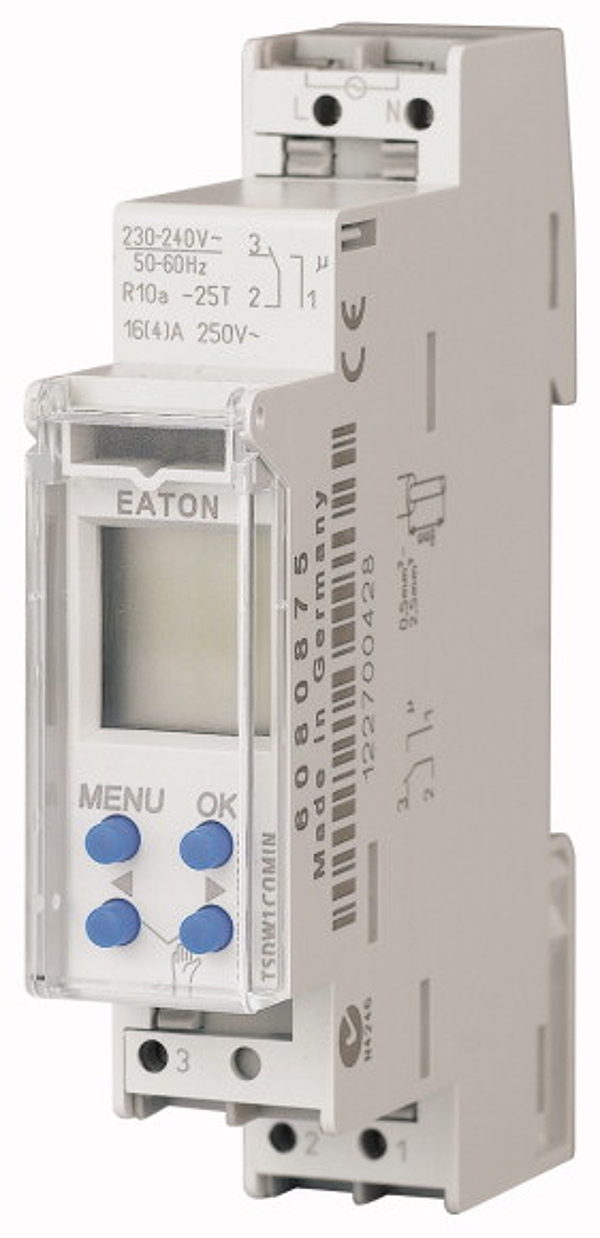

Eaton 167383
TSDW1COMIN
Series connection digital time switch 1 channel, 7 days, text line, 1 TLE
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Alternate Catalog No. TSDW1COMIN. EL-Nummer (Norway). 0001456985. Series connection digital time switch with quick fastening, text-oriented operator prompting in the display, width 17.5 mm, 10 years autonomy and programmed DST setting, day and week program, duoFix plug-in terminals, OBELISK interface for PC programming, 56 memory locations shortest changeover time 1 min., pushbutton summer/winter time, continuous switch ON/OFF/AUTO, switching preselection, 1 channel 1 changeover contacts 16A/250V~.
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.08 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
