158614
XPSBCB520

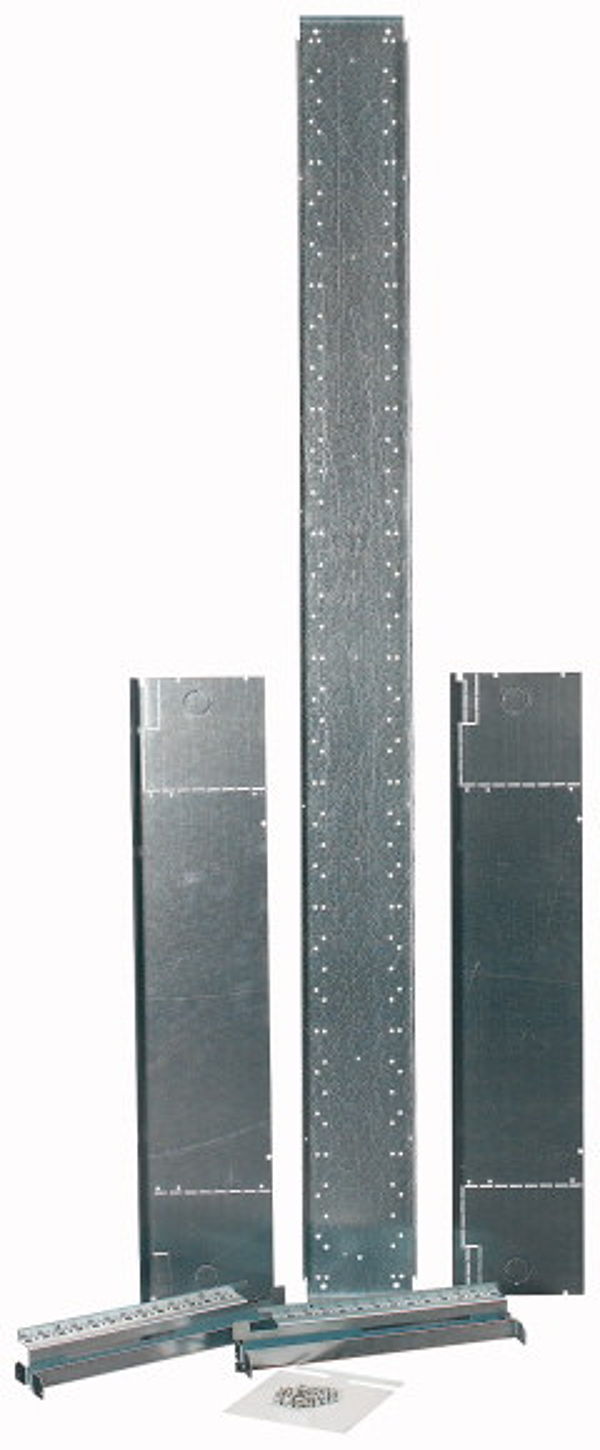

Partition, connection-/MBS-area, for cable area, W=520mm
Accessory for outgoer section: end-to-end mounting plate / partition for cable connection area in outgoer section. Plug-in unit section in 2/4 and SSL section with cable connection area, section width 1200 mm, device space width: 600 mm, cable connection area width of 520 mm. For fixing terminals/contact blocks in the cable connection area, serves as a partition between the cable connection area and main busbar area at the same time. These partitions must be used without fail for outgoing feeders in a 5000 A system (additional main busbar area).
ECCN: | |
Country of Origin: | CZ |
EAN: | |
Weight: | 1.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
