Product
Eaton
136235
E56ADL40UAD01
Request a Quote

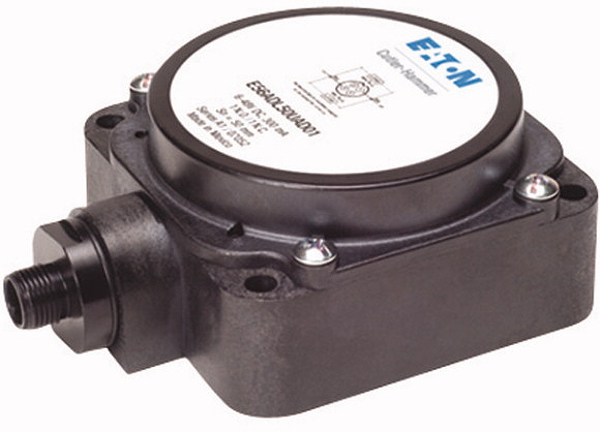

Image copyright: Eaton
Eaton 136235
E56ADL40UAD01
Proximity switch, inductive, 1N/O+1N/C, Sn=40mm, 4L, 6-48VDC, NPN, PNP, cubic 80mm, M12
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Alternate Catalog No. E56ADL40UAD01. EL-Nummer (Norway). 0004315388. Proximity switch, Inductive Sensors, Product range: E56 Pancake Series, Connection: 4-wire, Design (outer dimensions): 79 x 79 x 39 mm, Rated operational voltage: Ue= 10 – 42 V DC, Rated switching distance: Sn= 40 mm, Type of mounting: Non-flush, Switching type: NPN, PNP, Plug-in connection M12 x 1, Contacts N/C = Normally closed: 1 NC, Contacts N/O = Normally open: 1 N/O, Material: Insulated material, Degree of Protection: IP67, Standards: IEC/EN 60947-5-2
Logistic parameters
| ECCN: | |
| Country of Origin: | MX |
| EAN: | |
| Weight: | 0.45 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
