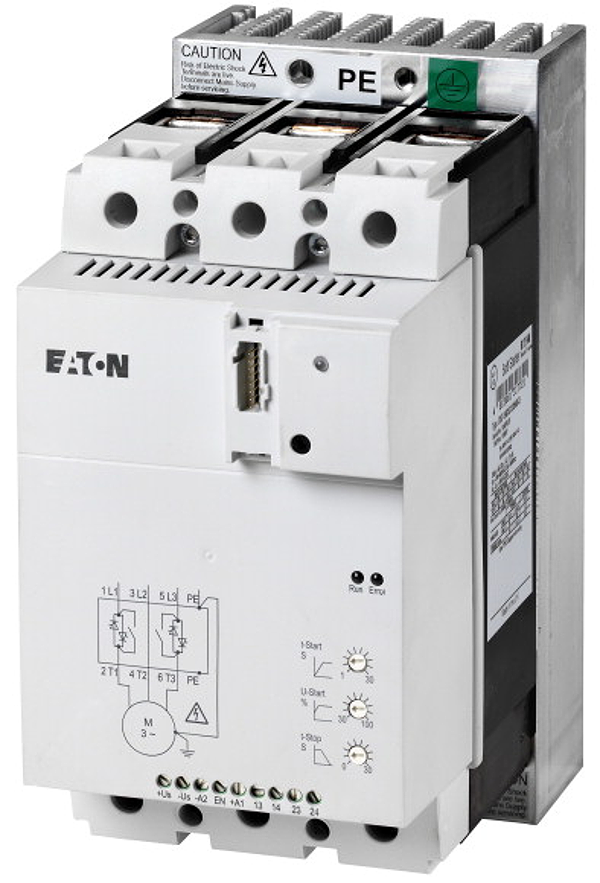

Eaton 134959

DS7-34DSX200N0-D

Soft starter, 200 A, 200 - 480 V AC, 24 V DC, Frame size: FS4, Communication Interfaces: SmartWire-DT

Description

Alternate Catalog No. DS7-34DSX200N0-D. EL-Nummer (Norway). 0004137346. Soft starter, Product range: SmartWire-DT slave, Description: With internal bypass contacts, Function: Soft starters for three-phase loads, Mains supply voltage (50/60 Hz): ULN= 200 - 480 V AC, Supply voltage: Us= 24 V DC, Control voltage: UC= 24 V DC, Assigned motor rating (Standard connection, In-Line) at 400 V, 50 Hz: P= 110 kW, at 460 V, 60 Hz: P= 150 HP, Rated operational current AC-53: Ie= 200 A, Rated operational voltage: Ue= 200 V, 230 V, 400 V, 480 V, Connection to SmartWire-DT: yes, Frame size: FS4, Standards: IEC/EN 60947-4-2, UL 508, CSA22.2-14
