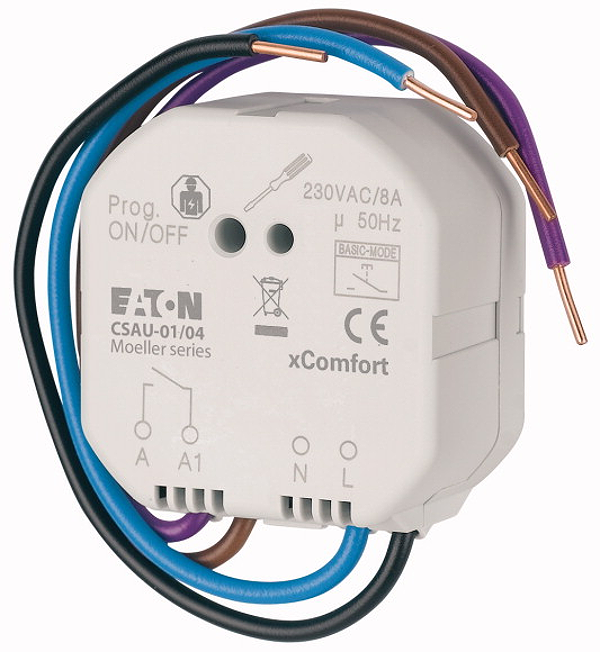

Eaton 121080

CSAU-01/04

Switching device, potential-free, 8A, 230VAC

Description

EL-Nummer (Norway). 0004560661. The "potential free switching with spring-return" receives and switches devices such as the bell. This product's special feature is that only the "spring-return" is used during assignment in Basic mode. Here, the output is switched as long as the assigned pushbutton/sensor is being actuated (function of a doorbell button). Even when resetting to factory settings (reset) reassigning a pushbutton/sensor in basic, only the spring-return is available. All known and best-established functions remain unchanged in Comfort mode. Power is supplied via the electrical power networks. Other voltages than the mains voltage may be switched. The device is built into the switch, branch, or installation box directly in the lamp shroud.
