119860
NZM3-XKV70-2

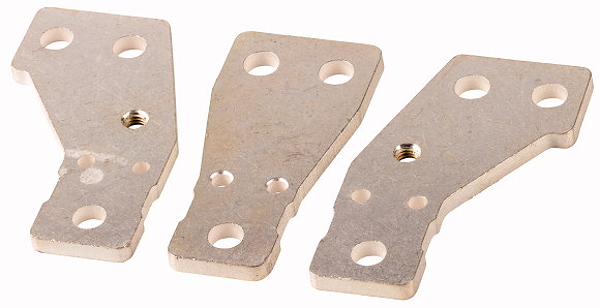

Connection width extension, 3p, 2-hole, size 3
EL-Nummer (Norway). 0004358865. Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for a terminal located at top or bottom for 3 pole circuit-breakers. Double hole fitting for up to 4 185 mm² cable lugs, 50mm busbar or large flat cable terminal NZM4-XKB or large tunnel terminal NZM4-XKA. Can be fitted to circuit-breaker with screw connection. Phase isolator, insulation plate and 2 control circuit terminals included as standard. Can be used for: NZM3, PN3, N(S)3
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.61 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
