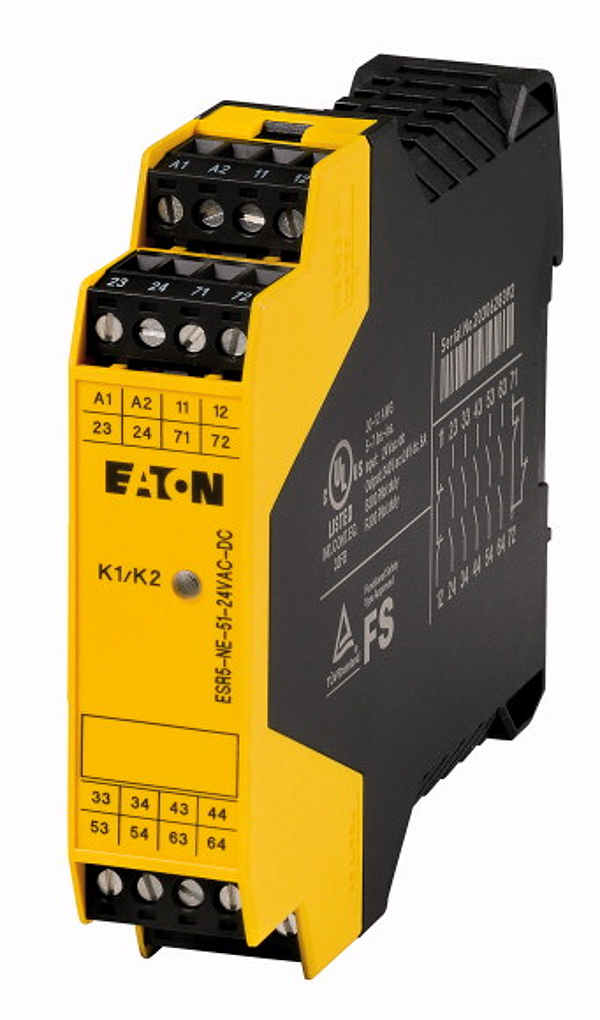

Eaton 118707

ESR5-NE-51-24VAC-DC

Contact expansion module, 24VDC/AC, 5 enabling paths

Description

EL-Nummer (Norway). 0004133324. Contact expansion module, non-delayed, to extend the contacts on safety logic modules and time function, supply voltage 24VDC or 24VAC 50/60Hz, 5 Enable current paths (IEC/EN 60204 Stop category 0) - the base unit determines the maximum safety category according to IEC 61508 and IEC 60204, 2 signal current paths, busbar tag shroud to EN 50274 with vertical actuation from the front finger- and back-of-hand proof, suitable for cat. 4 according to EN 954-1 / PL e according to EN ISO 13849-1 / SILCL3 according to IEC 62061 / SIL3 according to IEC61508, degree of protection IP20, installation location IP54 minimum, TÜV tested, rated impulse voltage 4 kV / basic isolation (safe isolation, reinforced insulation and 6 kV between input current circuit and enable contacts)
