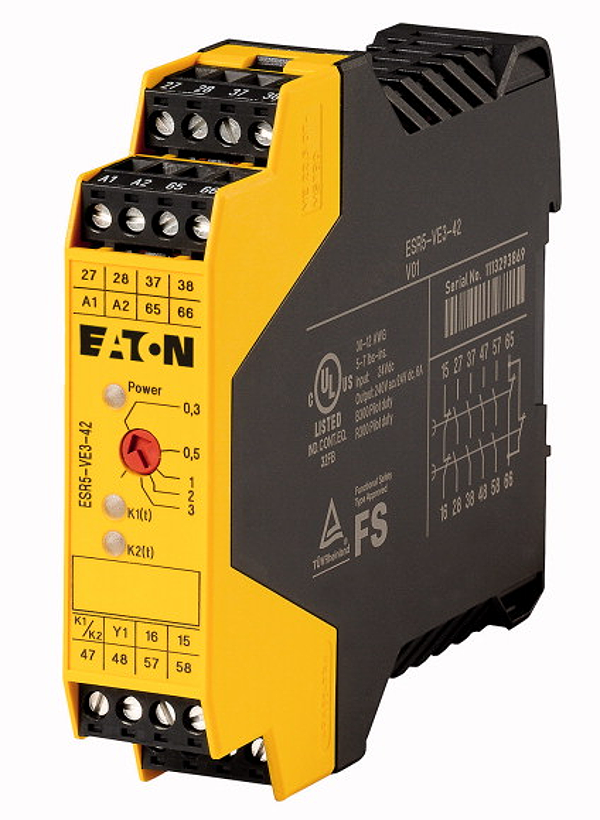

Eaton 118706

ESR5-VE3-42

Contact expansion module, 24VDC/AC, 4 enabling paths off-delayed

Description

EL-Nummer (Norway). 0004133322. Contact expansion module, off-delayed, for extending the contacts on safety logic modules and timing function, supply voltage 24VDC, 4 Enable current paths (IEC/EN 60204 Stop category 1) - the base unit determines the maximum safety category according to IEC 61508 and IEC 60204, 2 signal current paths, busbar tag shroud to EN 50274 with vertical actuation from the front finger- and back-of-hand proof, suitable for cat. 3 according to EN 954-1 / PL d according to EN ISO 13849-1 / SILCL3 according to IEC 62061 / SIL3 according to IEC61508, degree of protection IP20, installation location IP54 minimum, TÜV tested, rated impulse voltage 4 kV / basic isolation (safe isolation reinforced insulation and 6 kV between input current circuit/N/C contacts and enable contacts.
