118702

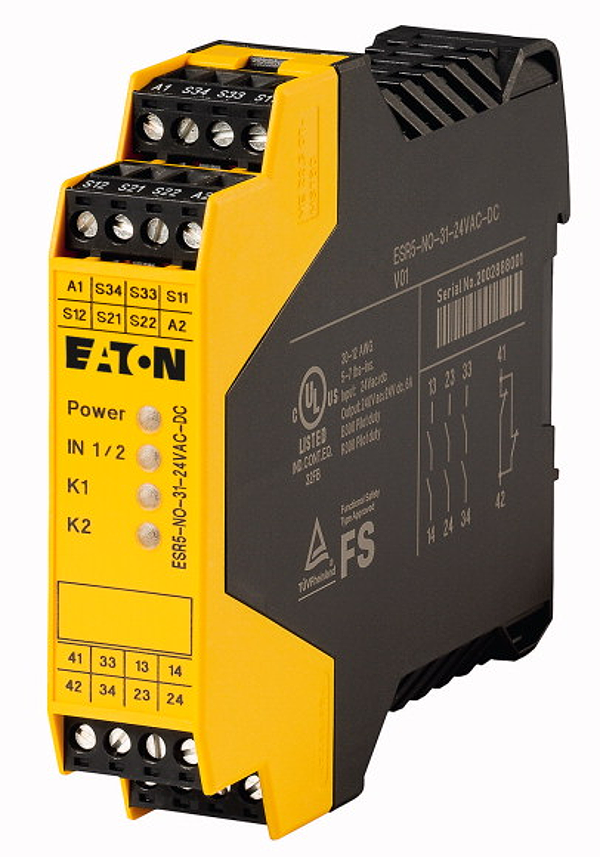

ESR5-NO-31-24VAC-DC
Safety relay emergency stop/protective door, 24VDC/AC, 3 enabling paths
EL-Nummer (Norway). 0004133318. Safety relay dual-channel, for implementing the basic functions emergency switching off, emergency stop, and protective door, supply voltage 24VDC or 24VAC 50/60Hz, 3 Enable current paths (IEC/EN 60204 Stop category 0), 1 signal current path, busbar tag shroud to EN 50274 with vertical actuation from the front finger- and back-of-hand proof, suitable for cat. 4 according to EN 954-1 / PL e according to EN ISO 13849-1 / SILCL 3 according to IEC 62061 / SIL 3 according to IEC 61508, degree of protection IP20, installation location IP54 minimum, TÜV tested, rated impulse voltage 4 kV / basic isolation (safe isolation, reinforced insulation and 6 kV between input current circuit and enable contacts.)
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.16 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
