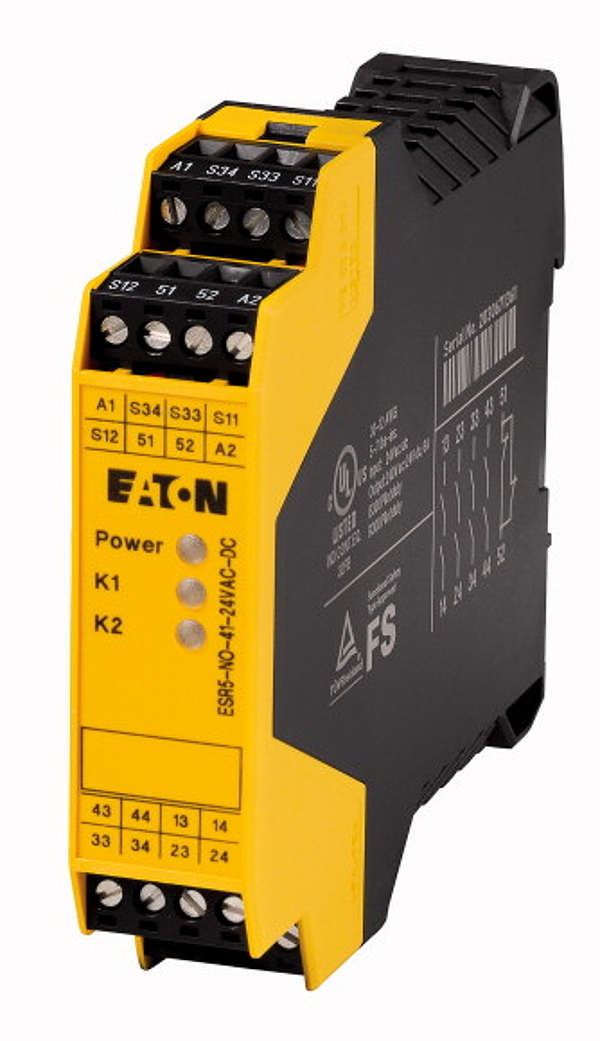

Eaton 118701

ESR5-NO-41-24VAC-DC

Safety relay emergency stop/protective door, 24VDC/AC, 4 enabling paths

Description

EL-Nummer (Norway). 0004133317. Safety relay single-channel, for implementing the basic functions emergency switching off, emergency stop, and protective door, supply voltage 24VDC or 24VAC 50/60Hz, 4 Enable current paths (IEC/EN 60204 Stop category 0), 1 signal current path, busbar tag shroud to EN 50274 with vertical actuation from the front finger- and back-of-hand proof suitable for cat. 4 according EN 954-1 / PL e according EN ISO 13849-1 / SILCL 3 according IEC 62061 / SIL 3 according IEC 61508 / cat. 4/PL e possible only with the aid of fault exclusions., degree of protection IP20, installation location IP54 minimum, TÜV tested, rated impulse voltage 4 kV / basic isolation (safe isolation reinforced insulation and 6 kV between input current circuit/N/C contacts and enable contacts.
