111712
CS-106/250

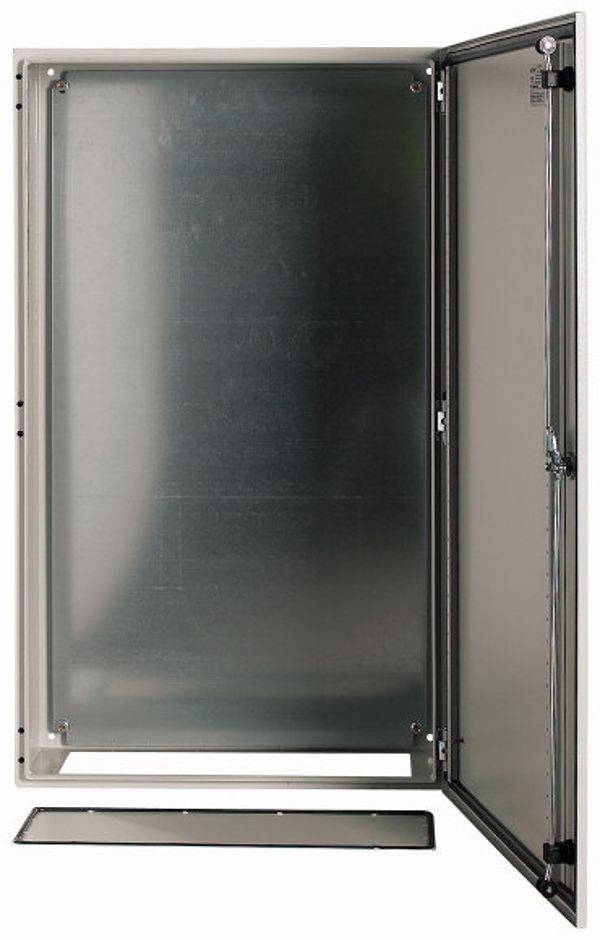

Wall enclosure, +mounting plate, HxWxD=1000x600x250mm
EL-Nummer (Norway). 0002466136. Wall-mounting housing CS, door with continuous foamed-in polyurethane gasket, shock resistance category IK09 to EN 62262, bottom plate with foamed gasket, gasket protected in deep-drawn area, single door, door hinges right, opening angle 120°, door hinge pins with quick change technology, door profile molding with perforation at 25 mm intervals for fixing DIN mounting rails or for fixing cable conduits and leads, standardized locking system with sash fastener. made completely of metal, 3-point locking system with sheet steel mounting plate , equipment supplied: lock, 3mm double ward key sensible accessory equipment e.g. rotary comfort grip PHZ-A-ADD-ON with cylinder lock PHZ-E10/30-GS.
ECCN: | |
Country of Origin: | ES |
EAN: | |
Weight: | 43.05 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
