107066
BBS-3/FL

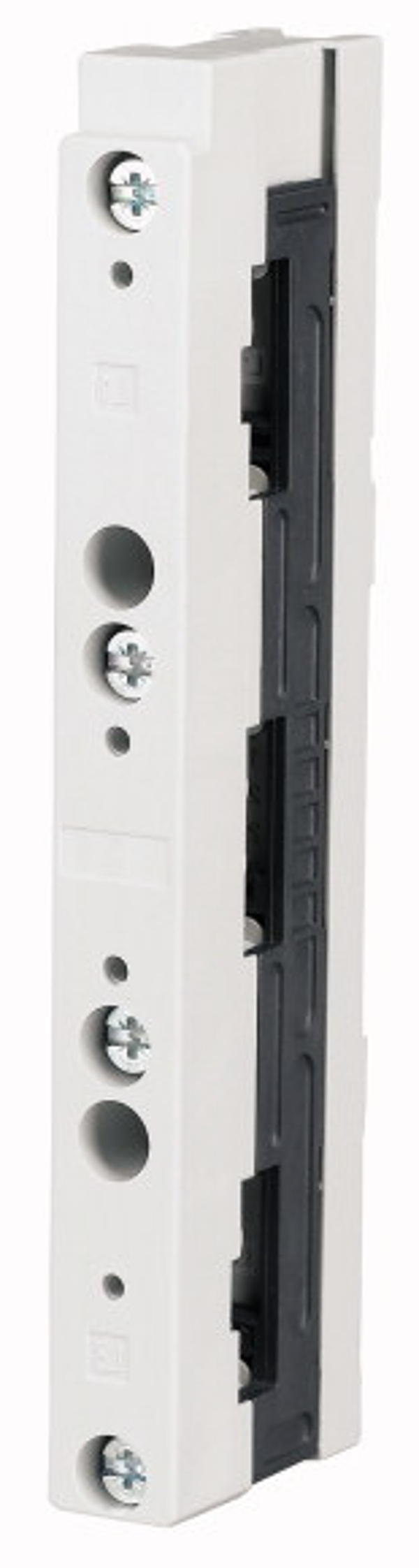

Busbar support, 3p, for flat busbars
EL-Nummer (Norway). 0002465000. IEC busbar support, 60 mm system, rated operational current Ie=630A, poles=3, can be used for 12x5/10, 15x5/10, 20x5/10, 25x5/10 and 30x5/10, with slider to adapt to the respective busbar size, with screw block inside, temperature resistant to 120 °C, track resistance CTI 200, self-extinguishing to UL 94, RAL 7035, thermoplastic, silicon free, chlorine free, halogen free, distance between busbar supports corresponding to short-circuit strength diagram
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.15 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
