106778
LS-S02-120AFT-ZBZ/X

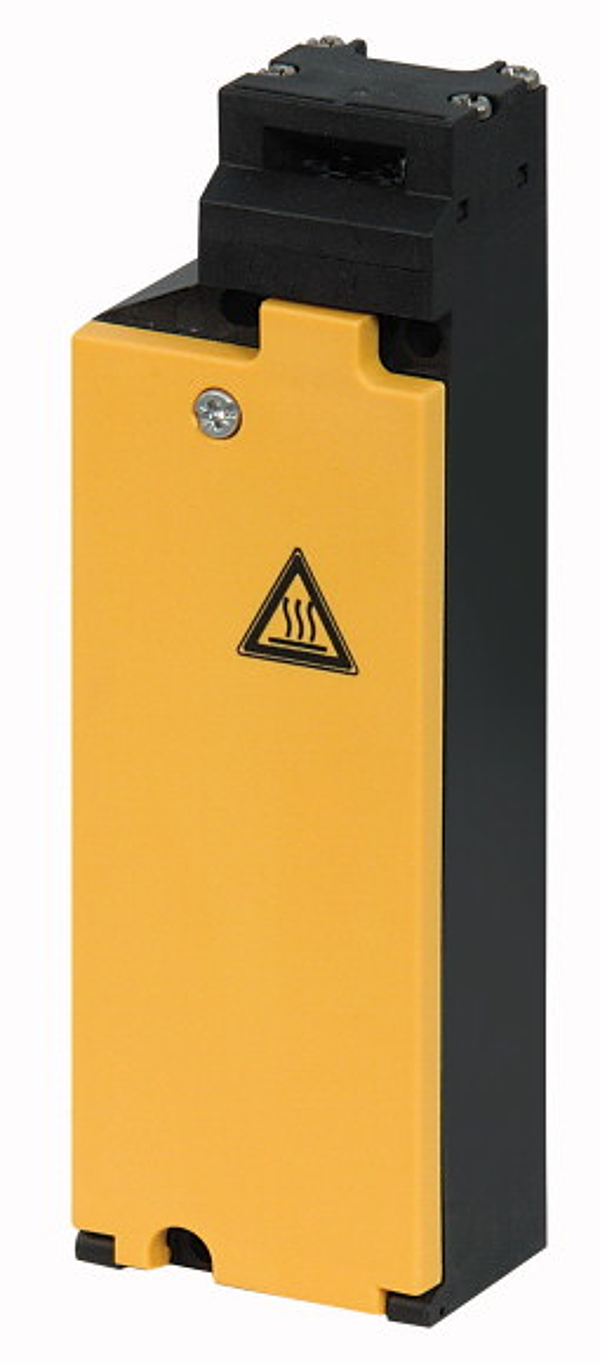

Position switch, 2 N/C, basic, spring force
Alternate Catalog No. LS-S02-120AFT-ZBZ/X. EL-Nummer (Norway). 4356173. Position switch, Basic function: Position switches, Safety position switches, Part group reference: LS…ZBZ/X, Product range: Basic units with spring-powered interlock (closed-circuit principle), Degree of Protection: IP65, Features: Basic device, expandable, Ambient temperature: -25 - +40 °C, Description: With interlock monitoring, with auxiliary release mechanism, Monitoring of door position: continuous, Contacts N/C = Normally closed: 2 NC, Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Rated control voltage for magnetic drive: Us= 120 V 50/60 Hz V, Housing: Insulated material, Connection type: Screw terminal, Standards: IEC/EN 60947
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.42 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
