060215
T0-1-15352/IVS

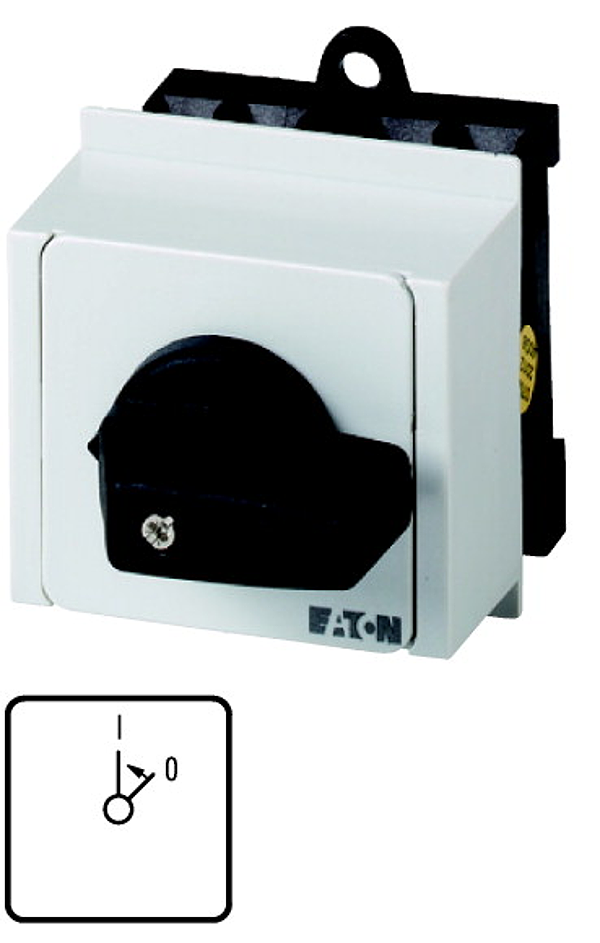

On switches, T0, 20 A, service distribution board mounting, 1 contact unit(s), Contacts: 2, 45 °, momentary, With spring-return from 0, I<0, Design number 15352
On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 45 °, Switching performance: momentary, With spring-return from 0, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: I<0
ECCN: | |
Country of Origin: | GB |
EAN: | |
Weight: | 0.11 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
