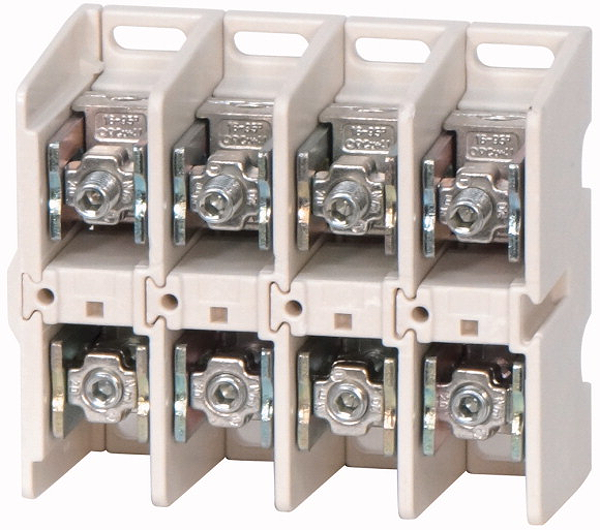

Eaton 027390
K95/4
Connection terminal, 160A, 4p, flat/round
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
EL-Nummer (Norway). 4132413. K connecting terminals, for AL and CU, one side round and the other side flat, rated operational current Ie=160 A, number pole=4, terminal capacities: Copper round cable stranded, sectoral stranded, round cable solid, sectoral solid and Al round cable solid, sectoral solid=1x16-95mm² or aluminum sectoral solid=1x35-70mm². Other side: copper band 3x9x0.8 up to 6x9x0.8 or Cu bar=18x4mm, notes: Conversion kits for strip terminal in cable connection available separately, terminal covers available separately
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 1.87 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
