Product
Eaton
020028
T3-3-8342/E-RT
Request a Quote
Image copyright: Eaton
Eaton 020028
T3-3-8342/E-RT

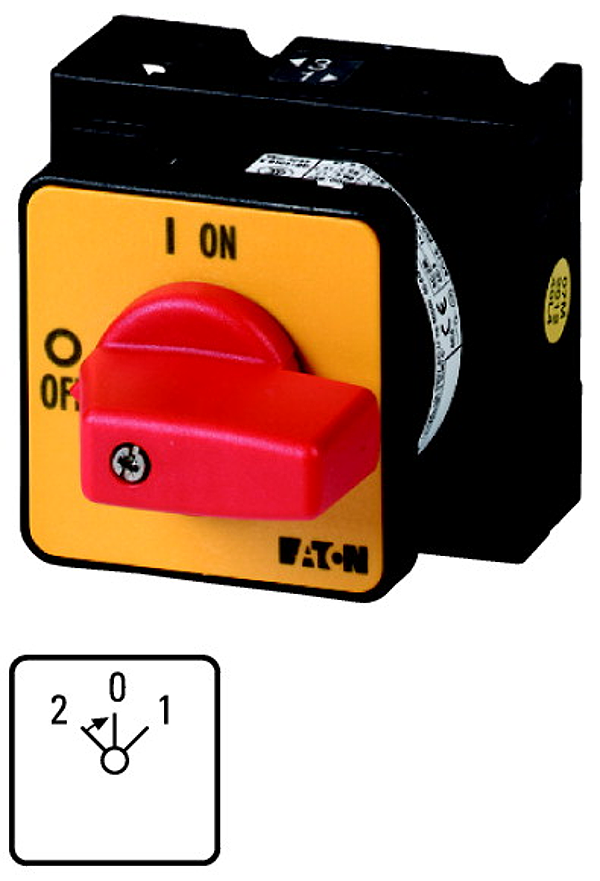

On-Off switch, T3, 32 A, flush mounting, 3 contact unit(s), 6 pole, Emergency switching off function, with red thumb grip and yellow front plate
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
On-Off switch, Product range: On-Off switch, Part group reference: T3, Stop Function: Emergency switching off function, with red thumb grip and yellow front plate, 6 pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
Logistic parameters
| ECCN: | |
| Country of Origin: | GB |
| EAN: | |
| Weight: | 0.21 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
