Product
Eaton
015374
T0-6-15168/E-RT
Request a Quote
Image copyright: Eaton

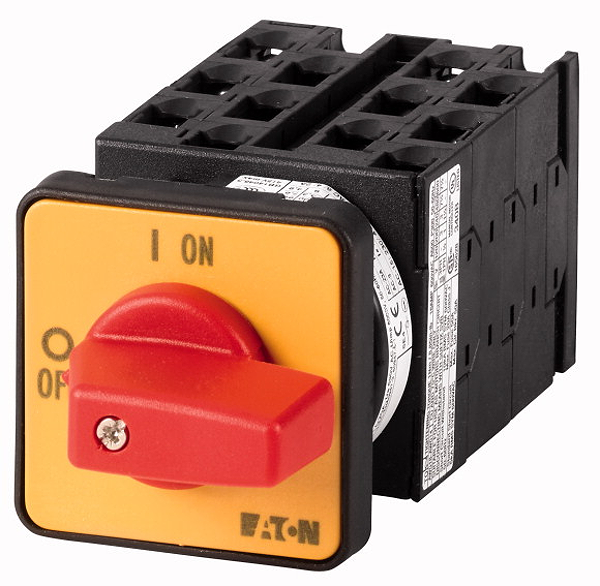

Eaton 015374
T0-6-15168/E-RT
On-Off switch, T0, 20 A, flush mounting, 6 contact unit(s), 9-pole, 2 N/O, 1 N/C, Emergency switching off function, with red thumb grip and yellow front plate
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
On-Off switch, Product range: On-Off switch, Part group reference: T0, Stop Function: Emergency switching off function, with red thumb grip and yellow front plate, 9-pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
Logistic parameters
| ECCN: | |
| Country of Origin: | GB |
| EAN: | |
| Weight: | 0.16 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
