009397
T0-1-8002/EZ

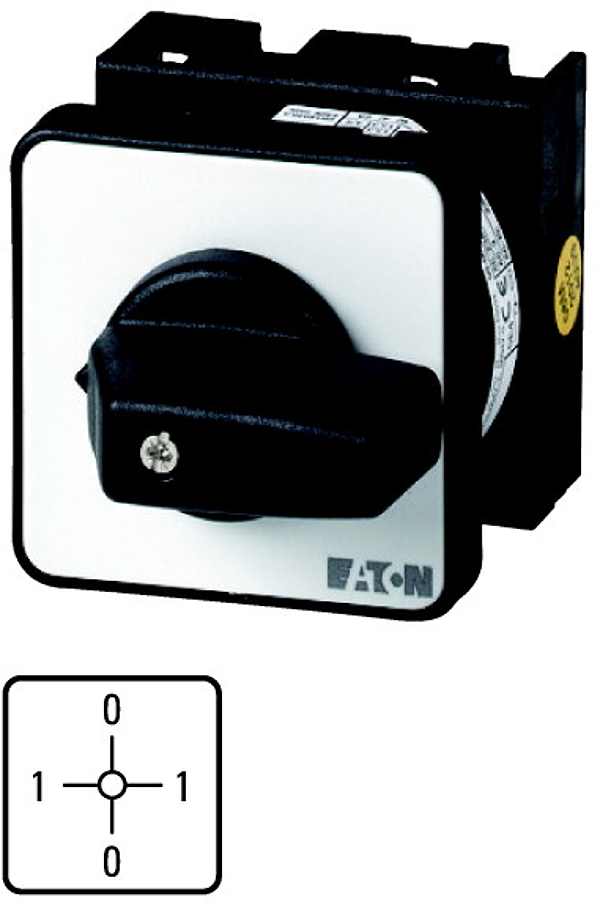

Voltmeter selector switches, T0, 20 A, centre mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, With 0 (Off) position, 0-1-0-1, Design number 8002
Cam switch according to IEC/EN60947, size T0, central installation shape fixing hole 22.3 mm, front plate 48x48, degree of protection Front IP65 with black thumb grip, rated uninterrupted current Iu 20A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T. General designs: insulation-material add-on housing, flush mounting, centre mounting, rear mounting IVS service distribution board mounting.
ECCN: | |
Country of Origin: | GB |
EAN: | |
Weight: | 0.10 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
