Product
Dold
0068683
LG7928.98PC/61 AC/DC24V 30-300S
Request a Quote
Image copyright: Dold

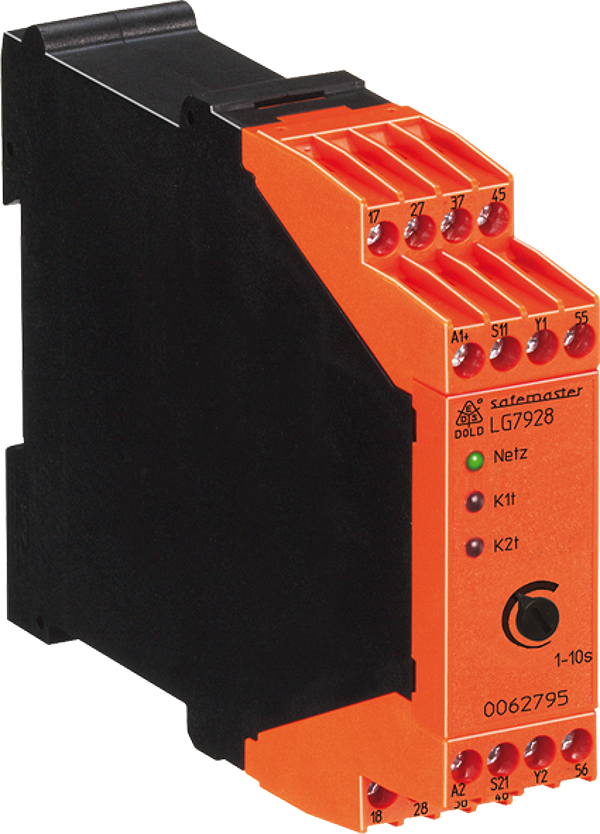

Dold 0068683
LG7928.98PC/61 AC/DC24V 30-300S
DELAY MODULE, RELEASE DELAYED
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Function: | Delay module, release delayed |
| Cat. / PL according to EN ISO 13849-1: | 3/d |
| SIL CL according to IEC/EN 62061: | 2 |
| 1- / 2-channel: | 1 |
| Output contacts max.: | 4 s; 1 ö |
| Thermal current Ith max.: | 5 A |
| Nominal voltage AC/DC: | + |
| Time delay max.: | 300 sec |
| Approvals: | UL |
| Connection: | S/PS/PC |
| Width: | 22,5 mm |
| Type: | LG 7928 |
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.20 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
