Product
Dold
0068574
UG6911.12/080 8E 4 einkanal. Ausg.
Request a Quote

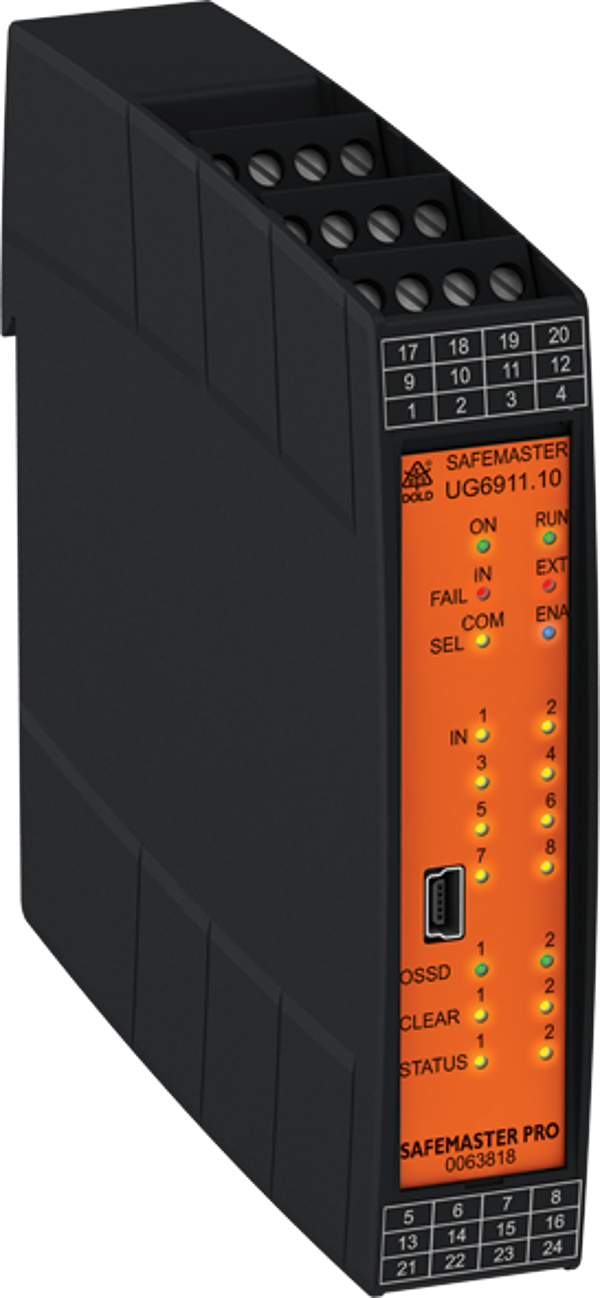

Image copyright: Dold
Dold 0068574
UG6911.12/080 8E 4 einkanal. Ausg.
CONTROL UNIT WITH SOFTWARE DESIGNER
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Function: | Control unit |
| Application emergency stop: | + |
| Application light barrier: | + |
| Application safety gate: | + |
| Application two-hand: | + |
| Application safety mat: | + |
| Cat. / PL according to EN ISO 13849-1: | 4/e |
| SIL CL according to IEC/EN 62061: | 3 |
| 2-channel safety inputs max.: | 8 |
| Safety, 2-channel outputs OSSD max.: | 2 |
| Test outputs for sensor monitoring max.: | 4 |
| Feedback for external monitoring: | + |
| Width: | 22,5 mm |
| Type: | UG 6911.10 |
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.18 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
