Product
Contrinex
YBB-30S2-0250-G012
630-200-003
Request a Quote
Image copyright: Contrinex

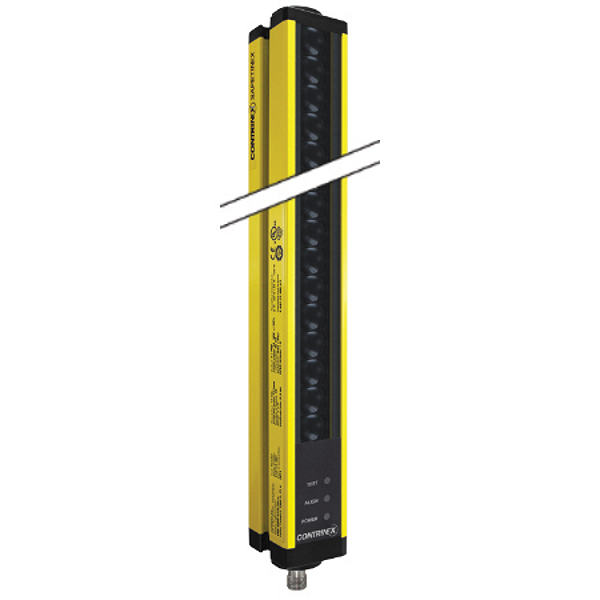

Contrinex YBB-30S2-0250-G012
630-200-003
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Product type: | Light curtain |
| Safety level: | Cat. 2, PL c, Type 2 |
| Housing size [mm]: | 42 x 48 |
| Resolution: | 30 mm (hand) |
| Protective height: | 279 mm |
| Total height: | 380 mm |
| Operating range: | 0.25...12 mm |
| Polarity: | PNP |
| Response time: | 18 ms |
| Supply voltage: | 24 VDC ± 20 % |
| Temperature range: | 0...50 °C |
| Enclosure rating (IP): | IP 65, IP 67 |
| Sender wavelength: | IR 850 nm |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
