YBB-30R2-0700-G012
630-200-010

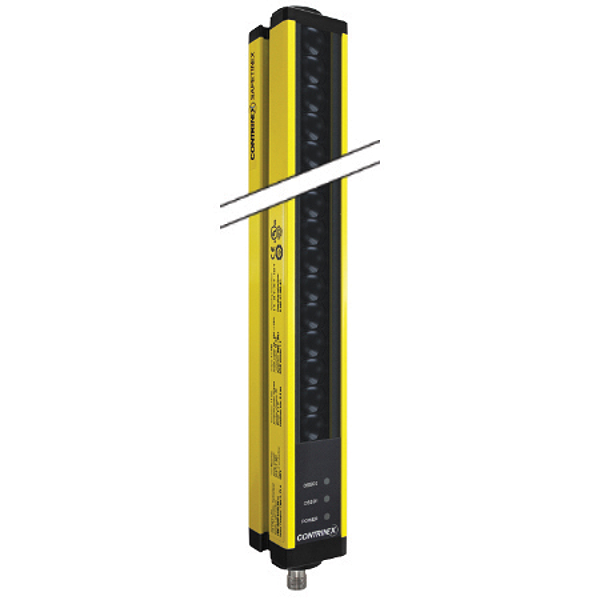

Product type: | Light curtain |
Safety level: | Cat. 2, PL c, Type 2 |
Housing size [mm]: | 42 x 48 |
Resolution: | 30 mm (hand) |
Protective height: | 666 mm |
Total height: | 767 mm |
Operating range: | 0.25...12 mm |
Polarity: | PNP |
Response time: | 30 ms |
Supply voltage: | 24 VDC ± 20 % |
Temperature range: | 0...50 °C |
Enclosure rating (IP): | IP 65, IP 67 |
Sender wavelength: | IR 850 nm |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
