Product
Contrinex
DW-LS-704-M30-002
320-420-306
Request a Quote
Image copyright: Contrinex

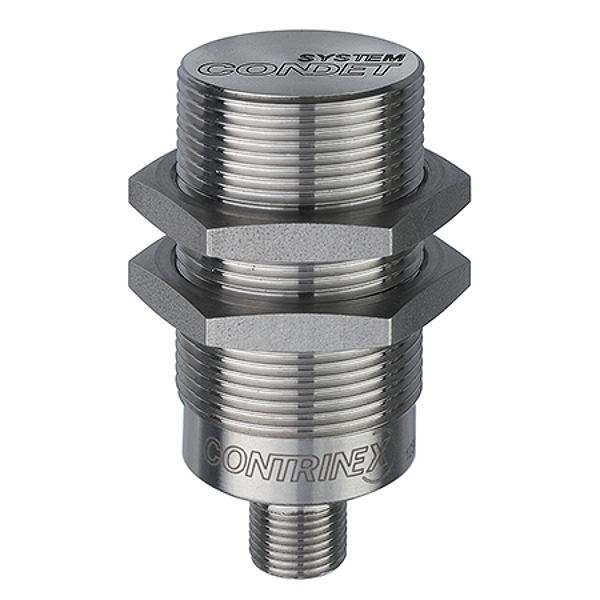

Contrinex DW-LS-704-M30-002
320-420-306
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating distance Sn: | 20 mm |
| Housing size [mm]: | M30 |
| Mounting: | Embeddable |
| Polarity: | PNP |
| Output: | Normally closed (NC) |
| Interface: | Standard output |
| Connection: | M12 4-pin |
| Supply voltage: | 10…30 VDC |
| Switching frequency max. [Hz]: | 125 |
| Housing material: | V4A / 1.4435 / AISI 316L |
| Enclosure rating (IP): | IP 68 / IP 69K |
| Operating pressure [bar]: | ? 40 bar |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
