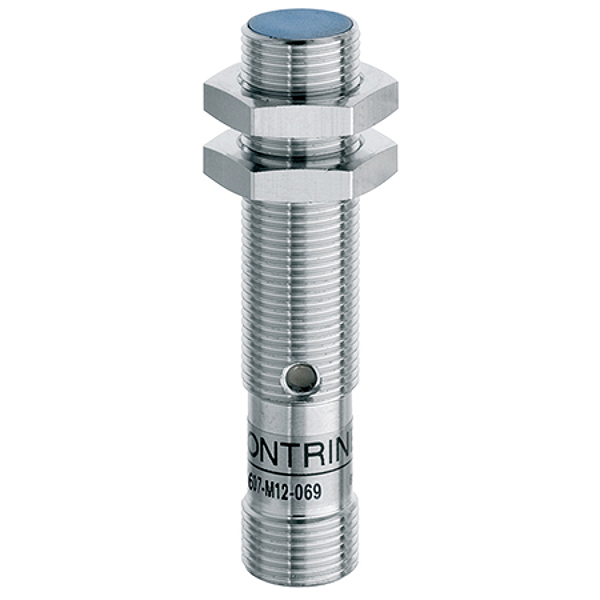

DW-AS-608-M12-069
220-820-852
Operating distance Sn: | 2 mm |
Housing size [mm]: | M12 |
Mounting: | Embeddable |
Polarity: | 2-wire |
Output: | Normally closed (NC) |
Interface: | Standard output |
Connection: | UNF 1/2' 3-pin |
Supply voltage: | 20…265/10...320 VAC/VDC |
Switching frequency max. [Hz]: | 25 |
Housing material: | Chrome-plated brass |
Enclosure rating (IP): | IP 67 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
