Product
Contrinex
DW-AS-509-C8-390
320-420-125
Request a Quote
Image copyright: Contrinex

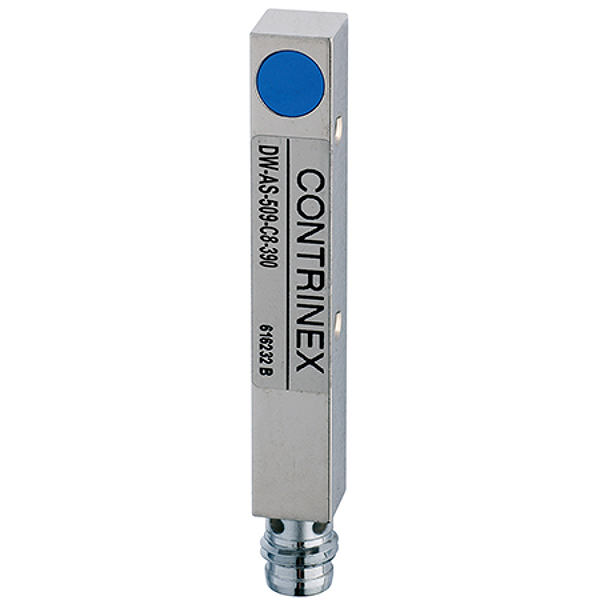

Contrinex DW-AS-509-C8-390
320-420-125
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating distance Sn: | 0...4 mm |
| Housing size [mm]: | 8 x 8 (C8) |
| Mounting: | Quasi-embeddable |
| Polarity: | Analog |
| Output: | Voltage |
| Interface: | Standard output |
| Connection: | M8 3-pin |
| Supply voltage: | 15…30 VDC |
| Switching frequency max. [Hz]: | 1600 |
| Enclosure rating (IP): | IP 67 |
| Enclosure rating (IP): | IP 67 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
