Comitronic-BTI
SM1/PL/E/OP/AC/FL
Request a Quote
Image copyright: Comitronic-BTI

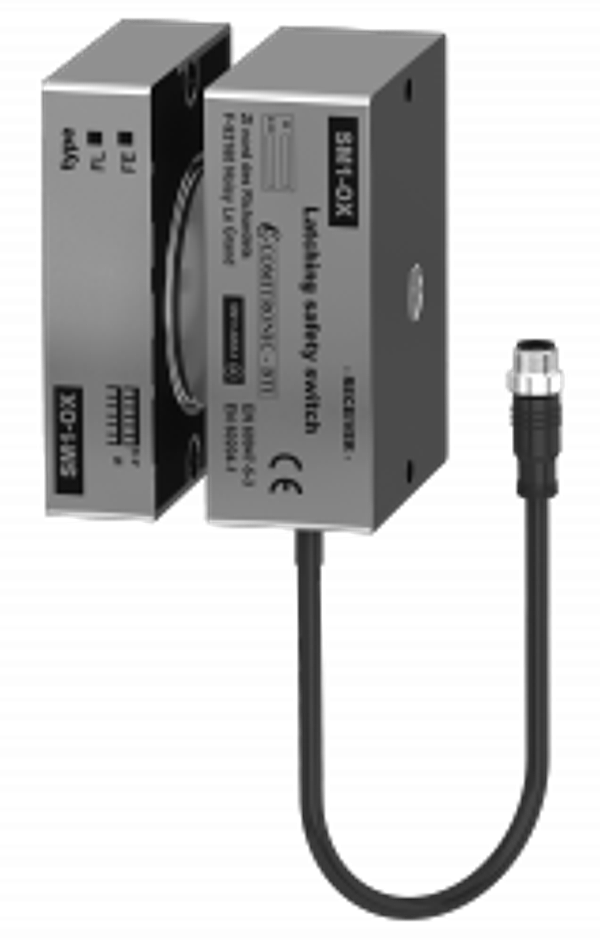

Comitronic-BTI SM1/PL/E/OP/AC/FL
316L stainless steel housing - power locking -58daN - stainless steel suction cups- IP69K - flexible counter plate - detects the position of the door
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Electromagnetic safety lock control with 580 N force
Technical parameters
| No power or under-voltage locking on machine casings Machine protection closing control for harsh environments 100% stainless steel version available Level of performance with AWAX controller: | up to PL = e Safety category up to 4 with AWAX controller or PLC SIL 3 Time before dangerous failure MTTFd = 100 years Maximum detection activation distance 2 mm Holding force up to 580 N Safety contacts/diagnostics 2 x NO 250mA max/24V redundant and 1 x PNP 250mA Detection encoding mono-code inviolable Indicator LED Reset automatic or controlled (ref. + OP) Attachment 4 M4 screws (inviolable on new generation and optional ref. BH4) Mounting position 1 Casing material INOX316L mirror polished (OX version) or POLYCARBONATE (PL version) Suction cup material INOX (SM1 + OX) or steel (SM1 + PL-AC) Electrical connection the M12 metal base will be replaced with a 50cm PUR cord with an M12 connector on the new generation Water resistance IP 67/68 Temperature -25°C to +50°C. Marking laser engraving with mechanically punched serial number for permanent traceability (OX version) or screen printed serial number for traceability (PL version) Nota |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
