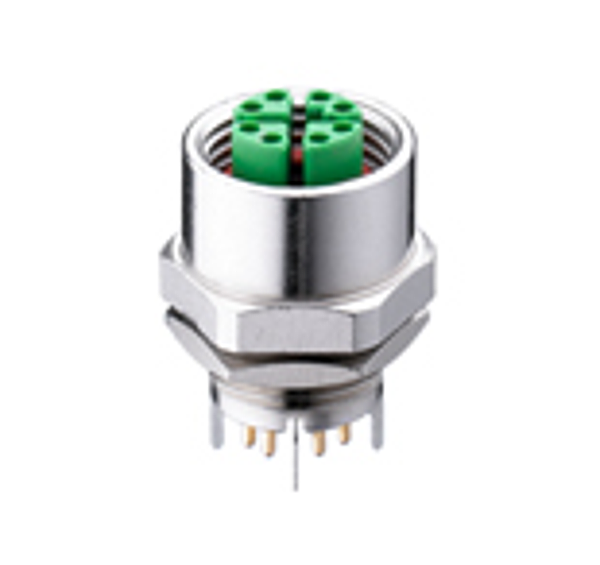

Image copyright: Belden
Belden 934637031
0986 EFC 651
0986 EFC 651 - Gigabit Ethernet Cat6 Data Receptacle Connector: Female, front mount, M12 - mating side, print contacts - connecting side, 8-pin, X-coded, unshielded, metallic grey housing, 48 V, 0.5 A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Receptacle connectors, M12 female connector for front mounting, assembling with printed contacts, 8 poles X coded. Gigabit Ethernet Cat6 Data Receptacle Connector: Female, front mount, M12 - mating side, print contacts - connecting side, 8-pin, X-coded, unshielded, metallic grey housing, 48 V, 0.5 A
Downloads
Technical parameters
| Product Family:: | Data Connectors |
| Product Sub Family:: | M12 Standard |
| Mating Side:: | M12 |
| Connecting Side:: | Print Contacts |
| Brand:: | Lumberg Automation |
| Connector Type:: | Receptacle |
| Type of Contact / Gender:: | Female |
| Connector Design:: | Front Mount |
| Number of Pins:: | 8 |
| Coding:: | X |
| Attachment Type:: | Screw-Locking |
| Operating Voltage:: | 48 V |
| Rated Current*:: | 0.5 A |
| Data Transmission Rate:: | Gigabit Ethernet Cat6 |
| Contact Resistance:: | ≤ 10 mOhm |
| Insulation Resistance:: | ˃ 10^9 Ohm |
| Mating Cycles:: | ≤ 100 |
| Type of Connection:: | PCB |
| Thread Size:: | PG9 |
| Ambient Temperature (Operation)*:: | - 25 °C - + 85 °C |
| Protection Degree / IP Rating**:: | IP67 |
| Design Standard:: | IEC 61076-2-101 |
| Pollution Degree:: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance:: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Contact Base Material:: | CuZn |
| Contact Plating:: | Cu/Au |
| Contact Bearer Material:: | PA |
| Contact Bearer Color:: | Green |
| Potted:: | no |
| Housing Material:: | CuZn |
| Housing Plating:: | Nickel-plated |
| Housing Color:: | Silver |
| Attachment Material:: | CuZn |
| Attachment Plating:: | Nickel-plated |
| O-Ring Material:: | FKM |
| Fastening Torque (Attachment):: | M 12x1: (50-60) Ncm, hand-tight |
| Accessories to Order Separately:: | Mounting Nut PG9 |
| RoHS Compliant:: | yes |
| Note Derating:: | * Notice derating |
| Protection Degree / IP Rating Note:: | * only if mounted and locked in combination with Hirschmann / Lumberg connector. On the installation side tightness has to be assured by taking proper measures. |
| Note:: | The receptacle connector is constructively intended for usage in IP67-products. To realise this protection class, the estimated location has to be designed accordingly. Further details see IEC 61076-2-101. |
| 934637031: | 0986 EFC 651 |
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.01 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
