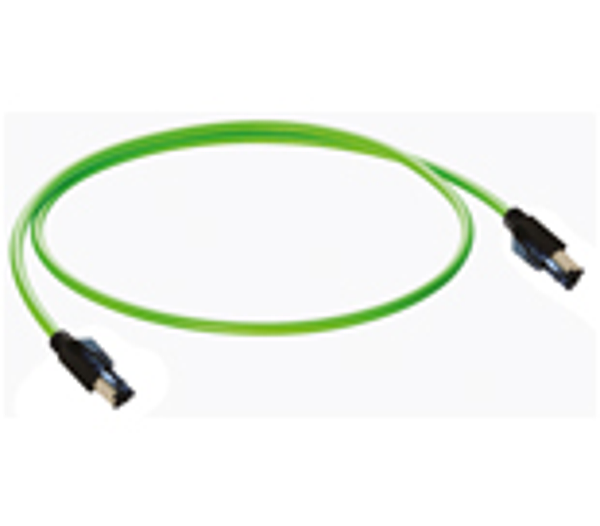

0985 S4742 502 - Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight RJ45-coded black RJ45 Field Attachable to male straight RJ45-coded black RJ45 Field Attachable, shielded, 30 V AC / 42 V DC, 1.5 A; TPE green cable, 4-wires, 0.38 mm²
Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight RJ45-coded black RJ45 Field Attachable to male straight RJ45-coded black RJ45 Field Attachable, shielded, 30 V AC / 42 V DC, 1.5 A; TPE green cable, 4-wires, 0.38 mm². PROFINET data cable according to type C, molded on both sides with RJ45 to RJ45 male connector, D coding, stranded/shielded, 22 AWG with green jacket.
yellow: | orange |
yellow: | orange |
Product Family:: | Data Connectors |
Brand:: | Lumberg Automation |
Connector Type:: | Cordset, double ended |
Shielding:: | Shielded |
Rated Voltage:: | 60 V |
Rated Impulse Voltage:: | 1 kV |
Operating Voltage:: | 30 V AC / 42 V DC |
Rated Current*:: | 1.5 A |
Data Transmission:: | Fast Ethernet Cat5e |
Data Transmission Rate:: | 100 Mbit/s |
Product Sub Family:: | RJ45 Field Attachable |
Type of Contact / Gender:: | Male |
Connector Design:: | Straight |
Number of Pins:: | 4 |
Coding:: | RJ45 |
Contact Resistance:: | ≤ 20 mOhm |
Insulation Resistance:: | ˃ 10^9 Ohm |
Mating Cycles:: | ≤ 750 |
Ambient Temperature (Operation)*:: | - 40 °C - + 70 °C |
Protection Degree / IP Rating**:: | IP20 |
Design Standard:: | IEC 60603-7 |
Overvoltage Category:: | I acc. to DIN EN 60664-1 (VDE 0110-1) |
Contact Base Material:: | CuSn |
Contact Plating:: | Cu/Au |
Contact Bearer Material:: | PA |
Contact Bearer Color:: | Black |
Flammability Class (Contact Bearer):: | UL 94 V-0 |
Housing Material:: | PA |
Housing Color:: | Black |
Flammability Class (Housing):: | UL 94 V-0 |
Shielding Material:: | Copper, nickel-plated |
Note:: | Do not connect or disconnect under load. |
Cable Number:: | 542 |
Conductor Size:: | 0.38 mm² |
Number of Wires:: | 4 |
Minimal Bending Radius (Fixed Inst):: | ˃ 30 mm |
Minimal Bending Radius (Flexible Inst):: | ˃ 60 mm |
Cycles (Bending):: | ˃ 5 M |
Conductor material:: | Cu |
Cable Jacket Material:: | TPE |
Cable Jacket Color:: | green matt similarly RAL 6018 |
Cable Diameter D:: | ø 6.50 ± 0.20 mm |
Wire Insulation Material:: | PP |
Insulated Wire Diameter:: | ø 1.50 mm |
Overall Shield (Cable):: | Cu-ETP1 tinned |
Foil shield:: | Al-PT Foil |
Ambient Temperature (Fixed Installation):: | - 40 °C - + 90 °C (UL: + 80 °C) |
Ambient Temperature (Flex Installation):: | - 40 °C - + 90 °C (UL: + 80 °C) |
Ambient Temperature (Drag Chain Inst):: | - 25 °C - + 60 °C |
Flammability Class (Cable Jacket):: | CM (UL 1685) |
Cable Characteristics:: | Exclusion of dangerous materials; Sunlight resistance: UL 1581 sec. 1200 |
Core Colors:: | white, blue, yellow, orange |
Product Sub Family, Side 2:: | RJ45 Field Attachable |
Type of Contact / Gender, Side 2:: | Male |
Connector Design, Side 2:: | Straight |
Number of Pins, Side 2:: | 4 |
Coding, Side 2:: | RJ45 |
Contact Resistance, Side 2:: | ≤ 20 mOhm |
Insulation Resistance, Side 2:: | ˃ 10^9 Ohm |
Mating Cycles, Side 2:: | ≤ 750 |
Ambient Temperature (Operation), Side 2*:: | - 40 °C - + 70 °C |
Protection Degree / IP Rating, Side 2**:: | IP20 |
Design Standard, Side 2:: | IEC 60603-7 |
Overvoltage Category, Side 2:: | I acc. to DIN EN 60664-1 (VDE 0110-1) |
Contact Base Material, Side 2:: | CuSn |
Contact Plating, Side 2:: | Cu/Au |
Contact Bearer Material, Side 2:: | PA |
Contact Bearer Color, Side 2:: | Black |
Flammability Class (Contact Bearer), Side 2:: | UL 94 V-0 |
Housing Material, Side 2:: | PA |
Housing Color, Side 2:: | Black |
Flammability Class (Housing), Side 2:: | UL 94 V-0 |
Shielding Material, Side 2:: | Copper, nickel-plated |
RoHS Compliant:: | yes |
Oil Resistance:: | UL OIL RES I |
Protection Degree / IP Rating Note:: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
Note Derating:: | Notice derating |
2121: | 0985 S4742 502/0,5 M |
2123: | 0985 S4742 502/1 M |
8833: | 0985 S4742 502/1,5 M |
2126: | 0985 S4742 502/2 M |
2127: | 0985 S4742 502/3 M |
2128: | 0985 S4742 502/5 M |
2130: | 0985 S4742 502/8 M |
2131: | 0985 S4742 502/10 M |
2132: | 0985 S4742 502/15 M |
2133: | 0985 S4742 502/20 M |
5413: | 0985 S4742 502/25 M |
2134: | 0985 S4742 502/30 M |
2136: | 0985 S4742 502/35 M |
9249: | 0985 S4742 502/40 M |
2137: | 0985 S4742 502/45 M |
2138: | 0985 S4742 502/50 M |
21102: | 0985 S4742 502/55 M |
2139: | 0985 S4742 502/60 M |
2140: | 0985 S4742 502/70 M |
12684: | 0985 S4742 502/80 M |
