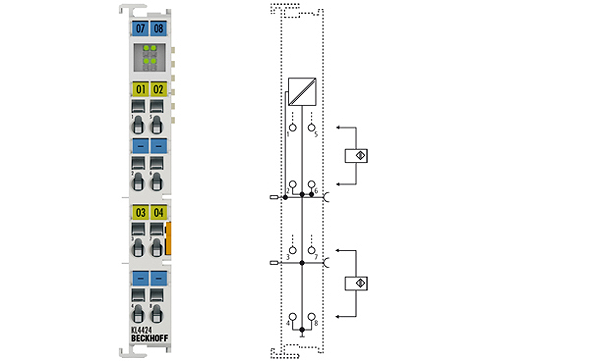

Beckhoff KL4424
KL4424 | 4-channel analog output terminal 4…20 mA
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The KL4424 analog output terminal generates signals in the range between 4 to 20 mA. The power is supplied to the process level with a resolution of 12 bits and is electrically isolated. The output stage is powered by the 24 V supply. In the KL4424, the four outputs are 2-wire versions.
Technical parameters
| Technology: | single-ended |
| Number of outputs: | 4 |
| Power supply: | 24 V DC via power contacts (alternative 15 V DC with power supply terminal KL9515) |
| Signal current: | 4…20 mA |
| Load: | < 350 Ω (short-circuit-proof) |
| Output error: | < ±0.1 % (relative to end value) |
| Resolution: | 12 bit |
| Conversion time: | ~ 4 ms |
| Electrical isolation: | 500 V (K-bus/signal voltage) |
| Current consumption power contacts: | typ. 60 mA + load |
| Current consumption K-bus: | typ. 20 mA |
| Bit width in the process image: | output: 4 x 16 bit data (4 x 8 bit control/status optional) |
| Weight: | approx. 75 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex, GL, IECEx |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
