KL2032

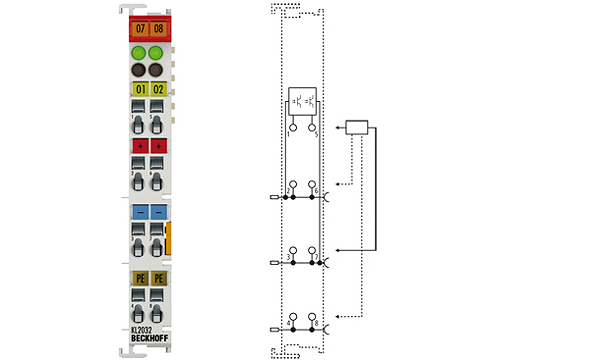

KL2032 | 2-channel digital output terminal 24 V DC
The KL2032 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. It is protected against reverse polarity connection. The Bus Terminal contains two channels that indicate their signal state by means of light emitting diodes.
Connection technology: | 4-wire |
Number of outputs: | 2 |
Rated load voltage: | 24 V DC (-15 %/+20 %) |
Load type: | ohmic, inductive, lamp load |
Max. output current: | 0.5 A (short-circuit-proof) per channel |
Short circuit current: | < 2 A |
Breaking energy: | < 150 mJ/channel |
Reverse voltage protection: | yes |
Electrical isolation: | 500 V (K-bus/field potential) |
Current consumption power contacts: | typ. 20 mA + load |
Current consumpt. K-bus: | typ. 5 mA |
Bit width in the process image: | 2 outputs |
Configuration: | no address or configuration setting |
Weight: | approx. 55 g |
Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Pluggable wiring: | for all KSxxxx Bus Terminals |
Approvals: | CE, UL, Ex, GL |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
