KL1904
KL1904 | 4-channel digital input terminal, TwinSAFE, 24 V DC

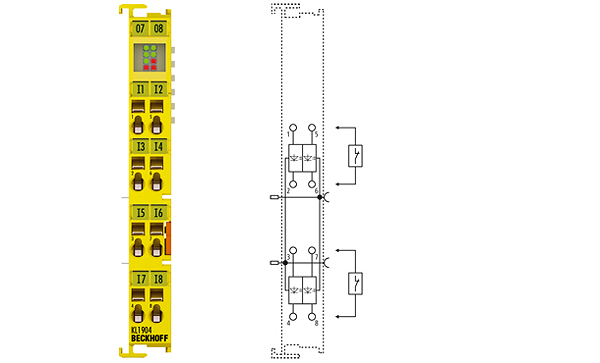

The KL1904 safety Bus Terminal is a digital input terminal for sensors with potential-free contacts for 24 V DC and has four fail-safe inputs.
Connection technology: | 2-wire |
Number of inputs: | 4 |
Protocol: | TwinSAFE/Safety over EtherCAT |
Response time: | typ. 4 ms (read input/write to K-bus) |
Fault response time: | ≤ watchdog time (parameterisable) |
Current consumption power contacts: | – |
Current consumption K-bus: | 48 mA |
Installation position: | horizontal |
Safety standard: | DIN EN ISO 13849-1:2008 (Cat. 4, PL e) and EN 61508:2010 (SIL 3) |
Weight: | approx. 50 g |
Protection class: | IP 20 |
Approvals/markings: | Overview of TwinSAFE Certifications (PDF) |
Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
