KL1194

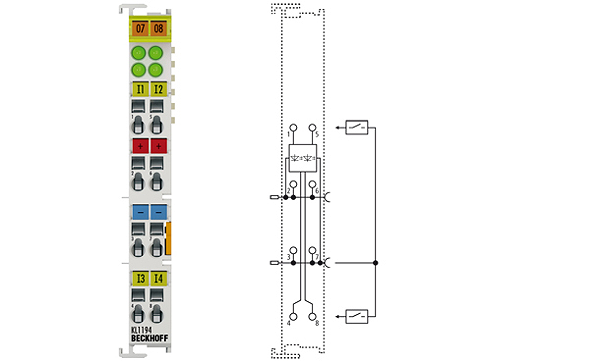

KL1194 | 4-channel digital input terminal 24 V DC,, switching to negative potential
The KL1194 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. Sensors that switch to 0 V (ground) can be connected to the KL1194. The Bus Terminal contains four channels that indicate their signal state by means of light emitting diodes.
Connection technology: | 2-/3-wire |
Specification: | negative switching |
Number of inputs: | 4 |
Nominal voltage: | 24 V DC (-15 %/+20 %) |
“0“ signal voltage: | 18…30 V |
“1“ signal voltage: | 0…7 V |
Input filter: | typ. 0.2 ms |
Input current: | typ. 5 mA |
Current consumption K-bus: | typ. 8 mA |
Electrical isolation: | 500 V (K-bus/field potential) |
Bit width in the process image: | 4 inputs |
Configuration: | no address or configuration setting |
Weight: | approx. 55 g |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Pluggable wiring: | for all KSxxxx Bus Terminals |
Approvals: | CE, UL, Ex |
