EL9250

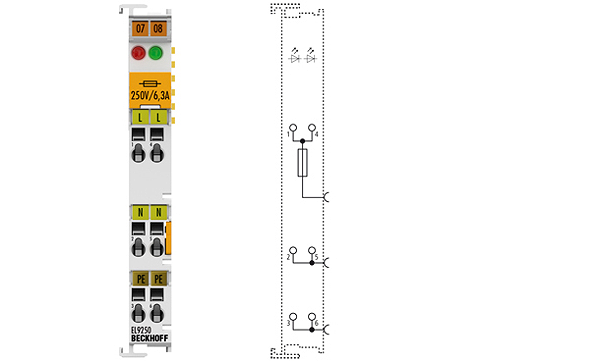

EL9250 | Potential supply terminal, 120…230 V AC, with fuse
The EL9250 power feed terminal makes it possible to set up various potential groups with the standard voltage of 230 V AC (120 V AC).
Technology: | potential supply terminal with fuse |
Current load: | ≤ 10 A |
Power LED: | green |
Defect LED: | red |
Renewed infeed: | yes |
Current consumption E-bus: | – |
Nominal voltage: | 120/230 V AC |
Integrated fine-wire fuse: | …6.3 A |
Electrical isolation: | 500 V (E-bus/field potential) |
Diagnostics in the process image: | – |
Reported to E-bus: | – |
PE contact: | yes |
Shield connection: | – |
Connection facility to additional power contact: | 1 |
Bit width in the process image: | 0 |
Electrical connection to DIN rail: | – |
Housing width: | 12 mm |
Side by side mounting on EtherCAT Terminals with power contact: | yes |
Side by side mounting on EtherCAT Terminals without power contact: | yes |
Weight: | approx. 55 g |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Approvals/markings: | CE |
