EL6652

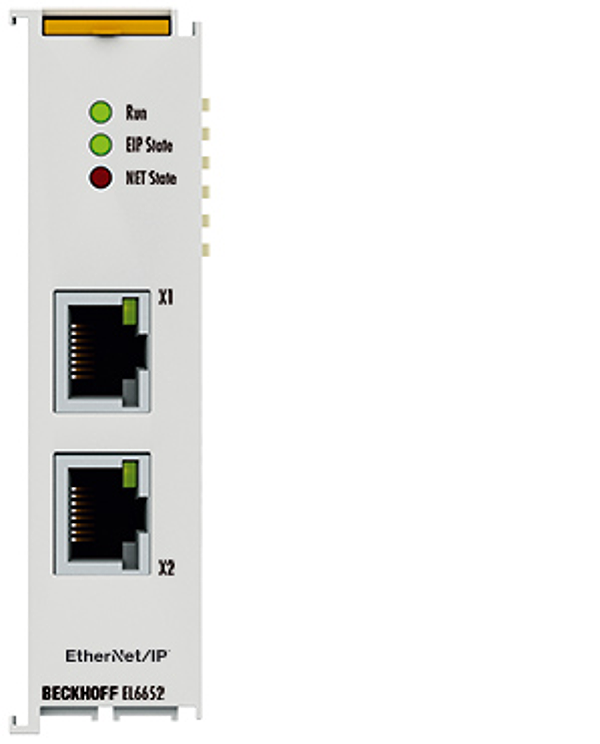

EL6652 | EtherNet/IP master terminal
The EL6652 EtherNet/IP-Master Terminal has a switched 2-port Ethernet connection and can thus be operated in a line with further Ethernet/IP nodes. The process data are configured by an EtherCAT master, allowing different process data and different sizes. The EL6652 supports both multicast and unicast connections. Up to 16 simple EtherNet/IP-Slave devices can be connected via one generic node. The EL6652 is optionally also available as a slave version.
Technology: | EtherNet/IP master terminal |
Number of ports/channels: | 2 (switched) |
Ethernet interface: | 100BASE-TX Ethernet with 2 x RJ45 |
Data length: | max. 1 kByte input and output data |
Cable length: | up to 100 m twisted pair |
Hardware diagnosis: | status LEDs |
Power supply: | via the E-bus |
Electrical isolation: | 500 V (E-bus/Ethernet) |
Protocol: | EtherNet/IP |
Configuration: | via EtherCAT master |
Current consumption E-bus: | typ. 400 mA |
Special features: | multicast/unicast connection |
Weight: | approx. 75 g |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/see documentation |
Approvals/markings: | CE, UL |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
