EL6022

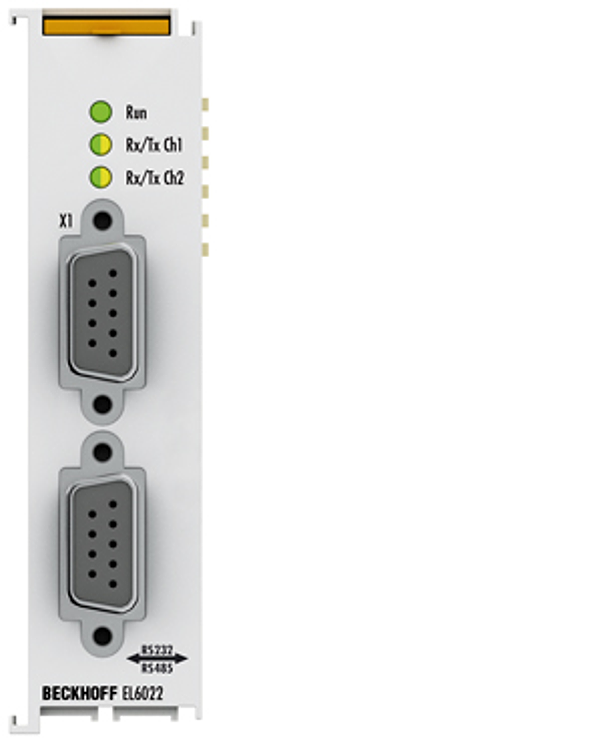

EL6022 | 2-channel serial interface RS422/RS485, D-sub connection
The EL6022 serial interface enables the connection of devices with two RS422/RS485 interfaces. The devices connected to the EL6022 EtherCAT Terminal communicate with the automation device via the Coupler. The active communication channel operates independently of the higher-level EtherCAT system in full duplex mode with 300 baud up to 115.2 kbaud. The RS422/RS485 interfaces guarantee high interference immunity through electrically isolated signals. The EL6022 can provide 2 x 5 V/20 mA out of the E-bus supply (electrically isolated, short-circuit-proof) for the supply of external devices.
Technology: | D-sub, 9-pin |
Data transfer channels: | 2 |
Data transfer rates: | 300…115,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit |
Interfaces: | 2 x RS422/RS485 |
Line impedance: | 120 Ω |
Cable length: | approx. 1000 m twisted pair |
Providing external supply: | 2 x max. 5 V/20 mA, out of E-Bus supply, short-circuit-proof |
Power supply: | via the E-bus |
Distributed clocks: | – |
Electrical isolation: | 500 V (E-bus/signal voltage) |
Data buffer: | 864 bytes receive buffer, 128 bytes transmit buffer |
Bit width in the process image: | 22 x 8 bit input, 22 x 8 bit output, 16 bit control, 16 bit status |
Configuration: | no address setting, configuration via the controller |
Current consumption power contacts: | – |
Current consumption E-bus: | typ. 270 mA |
Special features: | 2 x 5 V/20 mA for external supply |
Weight: | approx. 55 g |
Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Approvals: | CE, UL, Ex |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
