Product
Beckhoff
BK9000
Request a Quote

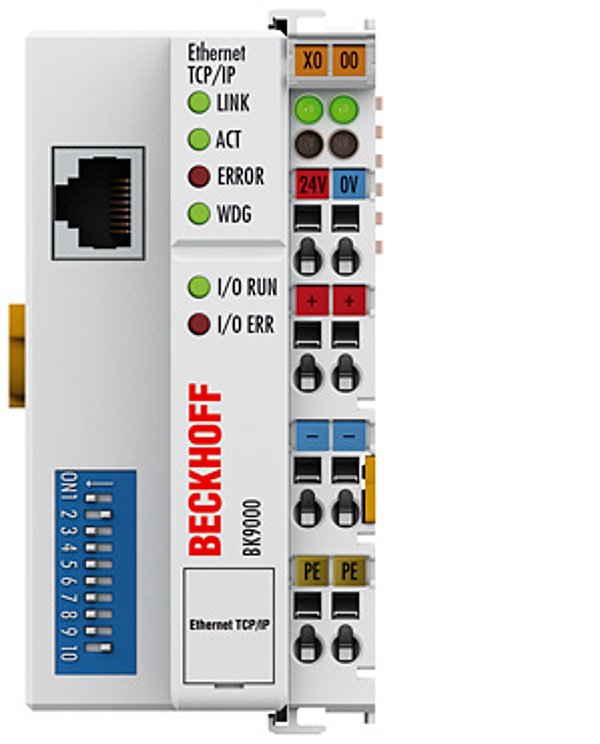

Image copyright: Beckhoff
Beckhoff BK9000
BK9000 | Ethernet TCP/IP Bus Coupler
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The BK9000 Bus Coupler connects Ethernet with the modular, extendable electronic terminal blocks. One unit consists of one Bus Coupler, any number from 1 to 64 terminals and one end terminal.
Technical parameters
| Number of I/O stations: | only limited by IP addresses |
| Number of I/O points: | depending on controller |
| Data transfer medium: | 4 x 2 twisted pair copper cable; category 3 (10 Mbaud), category 5 (100 Mbaud) |
| Distance between stations: | 100 m between hub/switch and Bus Coupler |
| Data transfer rates: | 10/100 Mbaud |
| Topology: | star wiring |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
