BK5120

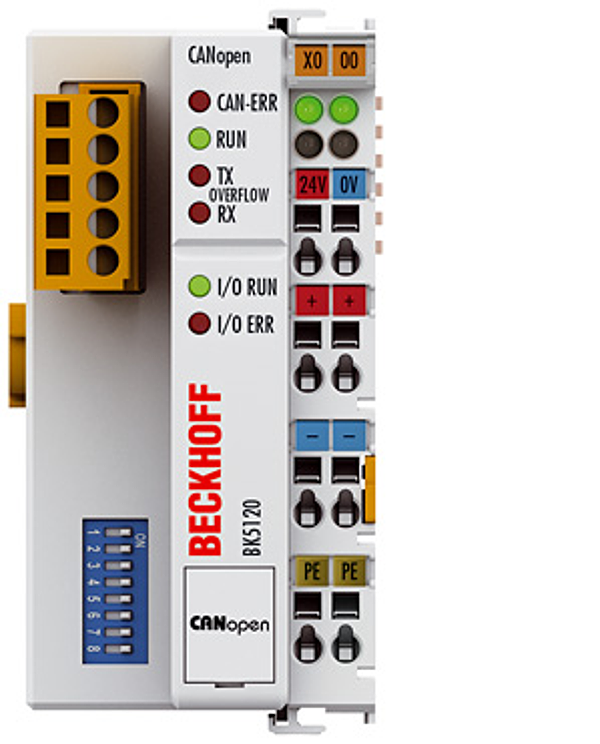

BK5120 | CANopen Bus Coupler
The BK5120 “Economy plus” Bus Coupler connects the CAN bus system to the electronic terminal blocks, which can be extended in modular fashion. One unit consists of one Bus Coupler, any number of up to 64 terminals and one end terminal. With the K-bus extension technology, the BK5120 allows the connection of up to 255 spatially distributed Bus Terminals to one Bus Coupler.
Number of I/O stations: | 64 (BK5120: 255 with K-bus extension) |
Number of I/O points: | depends on the structure |
Data transfer medium: | screened, twisted copper cable, 2 x signal, 1 x ground (recommended) |
Max. cable length 5,000 m: | 5,000 m 2,500 m 1,000 m 500 m 250 m 100 m 40 m 2,500 m |
5,000 m: | 2,500 m |
Data transfer rates 10 kbaud: | 10 kbaud 20 kbaud 50 kbaud 100/125 kbaud 250 kbaud 500 kbaud 1,000 kbaud 20 kbaud |
10 kbaud: | 20 kbaud |
PDO modes: | synchron, cyclic, event driven, polling |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
