2CPX068577R9999
TU73

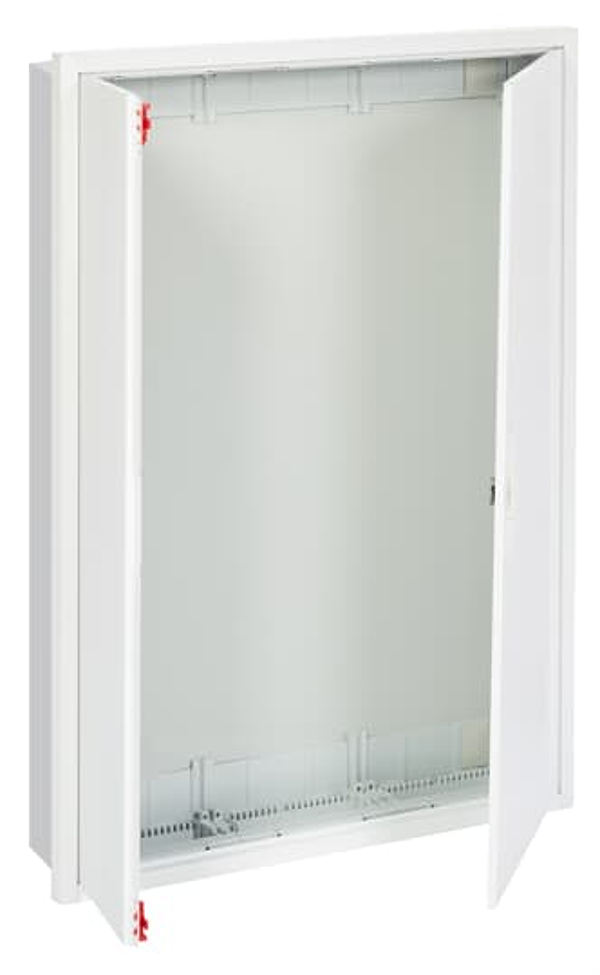

TU73 Dist. Board UP 7R IP31 TTA
Compact distribution boards, series TU, empty cabinet, for the internal use, with closed doorframe and door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP31, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, metal door , door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 130 degree, door hinge right and left, cable entry on top via nippel flange included, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 1134 x 810 x 120, Ratchet unit 7 GU, panel width 3, Space units 252, without N/PE Quick-terminal, cable fastening rail integrated, pre-assembled for installation of modules and CombiLine Modules
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617685777 |
Weight: | 26.88 kg |
Length: | 0.165 m |
Width: | 0.81 m |
Height: | 1.17 m |
