2CPX041827R9999
MBR302

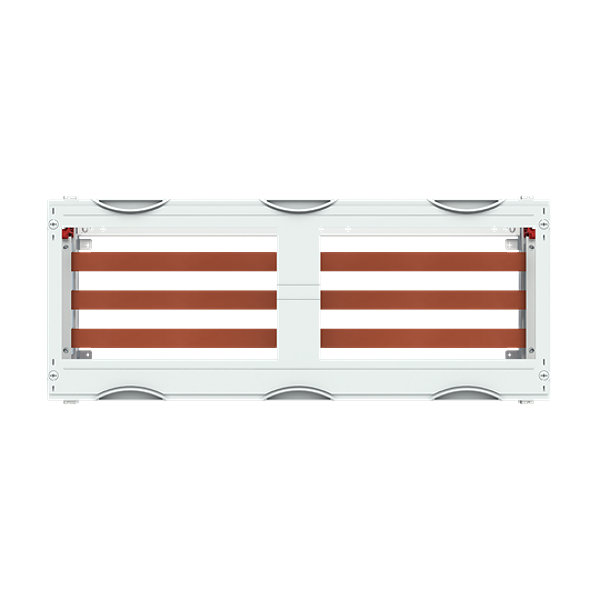

MBR302 Set Busbar Module
Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 60 mm horizontal, Ratchet unit 2 GU = 300 mm, panel width 3 = 750 mm, 72 Space units, , usuable width of 640 mm, unequipped for the installation of D0- and NH-fuse switch disconnector or fuse holder element D02, E27, E33, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX146, Busbar center distance: 60 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617418276 |
Weight: | 2.53 kg |
Length: | 0.75 m |
Width: | 0.75 m |
Height: | 0.055 m |
