Product
ABB
2CPX041713R9999
MBM113
Request a Quote
Image copyright: ABB

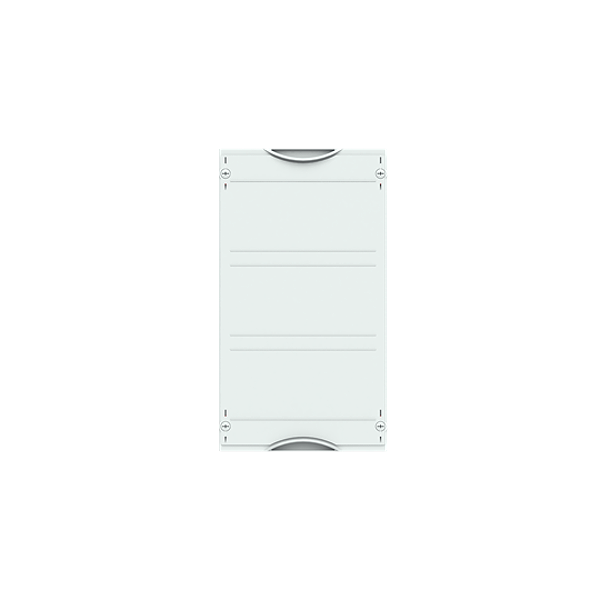

ABB 2CPX041713R9999
MBM113
MBM113 Set Mounting Plate Module
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Interior fitting module, CombiLine, Modular distribution panel not assembled, for Mounting plate, Ratchet unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 103 mm up to 158 mm, usuable width of 188 mm, usuable height of 416 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | 4011617417132 |
| Weight: | 2.45 kg |
| Length: | 0.45 m |
| Width: | 0.25 m |
| Height: | 0.051 m |
