ABB 2CPX041135R9999

MK314

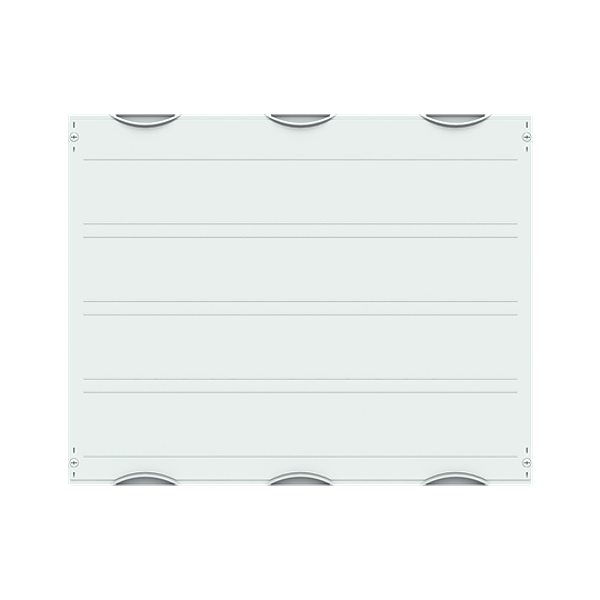

MK314 Terminal Block Modul vertical

Description

Interior fitting module, CombiLine, mounted in cabinet, for Vertical terminals, Ratchet unit 4 GU = 600 mm, panel width 3 = 750 mm, 144 Space units, assembled with DIN rail 35 x 15 mm with perforation for wire holders, DIN rail 3 panel wide and more are with additional stabilization profile, Stepless adjustable via mounting bracket, usuable depth of 66 mm up to 113 mm, usuable height of 591 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
